SKF Hook Spanner HN series Suit: KM07

M28x1.5 M30x1.5 M32x1.5 M35x15
Stock Code:
HN7_SKF
$20.61 incl GST

Stock Locations

  • Ballarat:
    1 In Stock
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

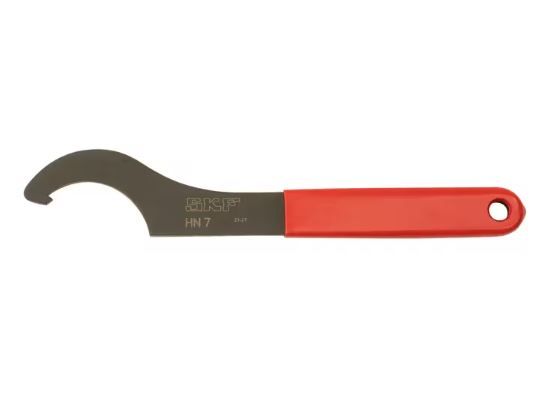

HN 7
SKF Hook spanner, size 7

The SKF Hook spanner, size 7, is designed for easy tightening and loosening of lock nuts. They are used to secure and adjust bearings on tapered journals, adapter sleeves and withdrawal sleeves.They fit on a variety of lock nuts with outer diameter(s) 52 - 55 mm. To be more specific for locknuts: KM 7, KMK 7, KMFE 7, KMT 6, KMT 7, N 07 and M28x1,5, M30x1,5, M32x1,5, M35x1,5 (DIN 1804).

  • Optimised design allow use in narrow spaces while maintaining maximum force
  • Sturdy plastic handle that is oil, dirt and grease resistant to provide a better grip
  • Drilled hole for easy hanging storage
  • Laser-engraved designation for easy identification
  • They fit on a variety of locknuts with outer diameter(s) 52 - 55mm
  • Available as part of the set HN 4-16/SET, supplied in a handy tool case

Dimensions

Lenght, L208 mm
Outer diameter locknut range, d52-55 mm
Thickness, n6 mm
Working lenght, l180 mm
Outer diameter lock nut range52 to 55 mm mm
Working length180 mm
Thickness6 mm
Length208 mm
Product weight0.17 kg



Properties

Allows bearing mountingyes, angle method or with clearance reduction measurement
CoatingBlack phosphated
ColourBlack, with red handle
Fits on lock nuts inside SKF split pillow block housings (SNL)no
MaterialMedium carbon steel, hardened and tempered
Material handleDurable soft plastic
Part of a kityes, HN 4-16/SET
Spanner following DIN 1810 size52-55 mm
Minimum number of lock nut slots1
Allows bearing mountingYes, angle method or with clearance reduction measurement
Fits on lock nuts inside SKF split pillow block housings (SNL)No
Spanner following DIN 1810 size52 to 55 mm mm
MaterialMedium carbon steel, hardened and tempered
Part of a kitYes, HN 4-16/SET
Material handleDurable soft plastic
CoatingBlack phosphated
ColourBlack, with red handle
