SKF - Internal Bearing Puller Kit - Spring Loaded

Expandable collet suit 7-60 mm bore
Stock Code:
TMIP7-60
$1,348.42 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

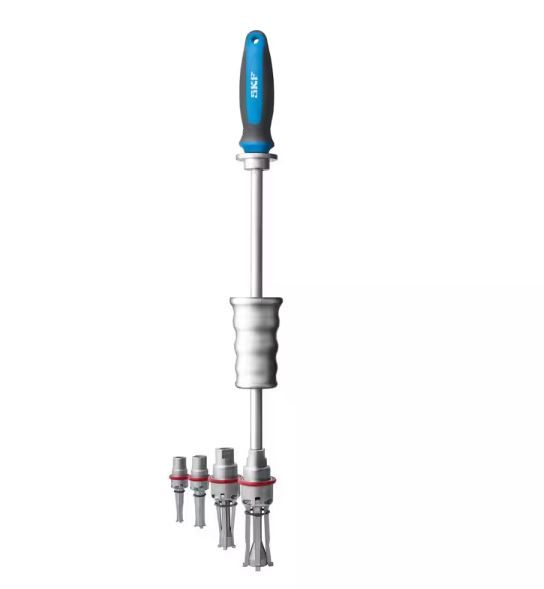

TMIP 7-60
Internal bearing puller kit

Designed for dismounting bearings from housings where the fit is on the outer ring and the shaft is removed. The pullers are manufactured for optimum strength and durability. A sliding hammer allows high impact forces to be applied and is ergonomically designed to enhance user safety. Comes with a range od extractors and two sliding hammers. Supplied in a sturdy carrying case, the TMIP 7-60 kit is suitable for bearing bores between 7 and 60 mm.

  • Reduce dismounting time
  • Unlike most internal bearing pullers, the spring loaded extractors can be quickly and easily fitted to the inner ring in just one quick action
  • A strong and secure grip behind the inner ring, allows a high puller force to be applied
  • Supplied with matching sliding hammer sizes
  • Supplied in handy toolcase

Dimensions

Width of grip internal7  –  60 mm
Workpiece width (max)
TMIP E7-9: 10 mm
TMIP E10-12:11 mm
TMIP E15-17: 18 mm
TMIP E20-28: 24 mm
TMIP E30-40: >35 mm
TMIP E45-60: >64 mm
Housing depth (max)
TMIP E7-9: 39 mm
TMIP E10-12:45 mm
TMIP E15-17: 55 mm
TMIP E20-28: 60 mm
TMIP E30-40: 97 mm
TMIP E45-60:102 mm
Needed free depth behind workpiece
TMIP E7-9: 6 mm
TMIP E10-12: 6 mm
TMIP E15-17: 7.5 mm
TMIP E20-28: 10 mm
TMIP E30-40: 11.5 mm
TMIP E45-60:15 mm
Extractor Hexagonal head size
Upto size TMIP E20-28: 15 mm
from size TMIP 30-40: 19 mm
Total extractor length
TMIP E7-9: 91 mm
TMIP E10-12: 91 mm
TMIP E15-17: 118 mm
TMIP E20-28: 127 mm
TMIP E30-40: 143 mm
TMIP E45-60:155 mm
Slide hammer total length
417mm
557mm
Case dimensions (l x h x w)530 x 110 x 360 mm

Properties

Recommended applicationsFor the dismounting of bearings, gears, pulleys and other industrial ring shaped components in industrial, construction and agricultural applications with an interference fit inside a housing
Suitable for workpiece dismounting from a Cylindrical seating (straight shaft)No
Suitable for bearing dismounting from Tapered seating (conical shaft)No
Suitable for bearing dismounting from Sleeves (adapter/withdrawal sleeve with a straight shaft)No
Suitable for workpiece dismounting from a Blind arrangement (housing with shaft)No
Suitable for workpiece dismounting from a HousingYes
Suitable for bearing type(s)All
Dismounting force generationSliding hammer
Special featuresWith unique spring-loaded grip system for easy operation
Total number of extractors in kit6x : TMIP E7-9, TMIP E10-12 , TMIP E15-17, TMIP E20-28, TMIP E30-40, TMIP E45-60
Slide hammer weight(s)
1.0 kg
2.05 kg
Total number of sliding hammers in kit2x :TMIP S1 and TMIP S2 with common handgrip
MaterialMedium carbon steels and alloy engineering steels, hardened and tempered
Material handleOpener handle: steel, Slidehammer: thermoplastic elastomer
CoatingZinc coated
Content
6x Extractors size E7-9 to E45-60
2x slidehammer, sizes S1 and S2 with common handgrip
1x Printed Instructions for Use (language free)
1x Carrying case (size C)
Total product weight
