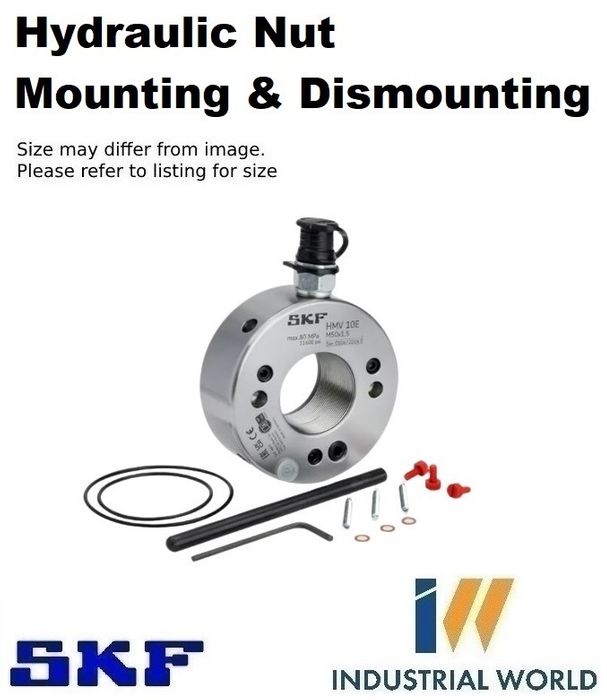

SKF Hydraulic Nut - for mounting and dismounting

M70x2
Stock Code:
HMV14E_SKF
$1,558.66 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

HMV 14E
Hydraulic nut for mounting or dismounting of bearings

Facilitates easy and quick application of the high drive-up forces required for mounting bearings on tapered seatings. The hydraulic nut can also be used for dismounting bearings mounted on either adapter or withdrawal sleeves.

  • Quick connection coupling can be fitted on the face or side of the nut
  • A spare set of piston seals and maintenance kit is included
  • Supplied with a quick connection coupling to fit the SKF hydraulic pumps
  • Equipped with eyebolts, two tommy bars and four mating holes on their front face

Properties

TypeMetric thread
Product weight3.2 kg

Dimensions

Connecting threadM 70x2
Thread formISO 965/111-1980 tolerance class 6H
Maximum piston displacement5 mm
Outer diameter135 mm
Piston area3 800 mm²
Piston inner diameter70.5 mm
Piston outer diameter127 mm
Piston width5 mm
Width38 mm
Product weight3.2 kg

Performance

Maximum pressure800 bar
Maximum pressure80 MPa

Click here for product information

Click Here for Hydraulic Nut Information

Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Brand:
    SKF
