SKF Hydraulic Nut - for mounting and dismounting

Tr210x4
Stock Code:
HMV42E_SKF
$3,638.80 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

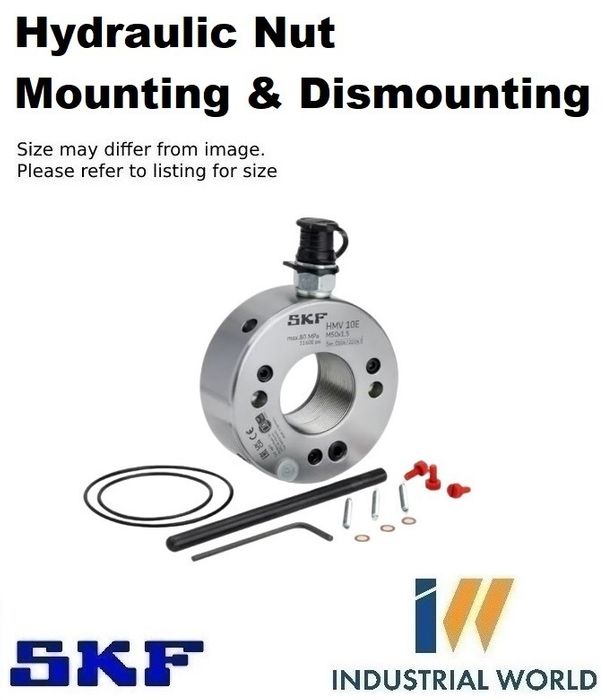

HMV 42E
Hydraulic nut for mounting or dismounting of bearings

Facilitates easy and quick application of the high drive-up forces required for mounting bearings on tapered seatings. The hydraulic nut can also be used for dismounting bearings mounted on either adapter or withdrawal sleeves.

  • Quick connection coupling can be fitted on the face or side of the nut
  • A spare set of piston seals and maintenance kit is included
  • Supplied with a quick connection coupling to fit the SKF hydraulic pumps
  • Equipped with eyebolts, two tommy bars and four mating holes on their front face

Properties

TypeMetric thread
Product weight12.5 kg

Dimensions

Connecting threadTr 210x4
Thread formISO 2901-1977 tolerance class 7H
Maximum piston displacement9 mm
Outer diameter294 mm
Piston area13 400 mm²
Piston inner diameter212 mm
Piston outer diameter282 mm
Piston width8 mm
Width44 mm
Product weight12.5 kg

Performance

Maximum pressure800 bar
Maximum pressure80 MPa

Click here for product information

Click Here for Hydraulic Nut Information

Product Guide Attached
