SKF Hook Spanner HN series Suit: KM00

M6x0.75 M8x1
Stock Code:
HN0_SKF
$9.86 incl GST

Stock Locations

  • Ballarat:
    1 In Stock
  • Shepparton:
    Special Order

Description

HN 0

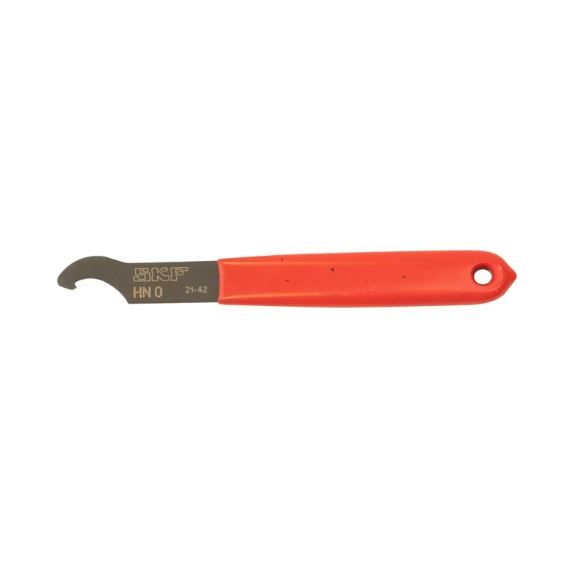

SKF Hook spanner, size 0

The SKF Hook spanner, size 0, is designed for easy tightening and loosening of lock nuts. They are used to secure and adjust bearings on tapered journals, adapter sleeves and withdrawal sleeves.They fit on a variety of lock nuts with outer diameter(s) 16 - 20 mm. To be more specific for locknuts: KM 0, KMK 0, N 00 and M6x0,75, M8x1 (DIN 1804).

  • Optimised design allow use in narrow spaces while maintaining maximum force
  • Sturdy plastic handle that is oil, dirt and grease resistant to provide a better grip
  • Drilled hole for easy hanging storage
  • Laser-engraved designation for easy identification
  • They fit on a variety of locknuts with outer diameter(s) 16 - 20mm

Dimensions

Lenght, L109 mm
Outer diameter locknut range, d16-20 mm
Thickness, n3 mm
Working lenght, l100 mm
Outer diameter lock nut range16 to 20 mm
Working length100 mm
Thickness3 mm
Length109 mm
Product weight0.02 kg

Properties

Allows bearing mountingyes, angle method or with clearance reduction measurement
CoatingBlack phosphated
ColourBlack, with red handle
Fits on lock nuts inside SKF split pillow block housings (SNL)no
MaterialMedium carbon steel, hardened and tempered
Material handleDurable soft plastic
Part of a kitno
Minimum number of lock nut slots1
Allows bearing mountingYes, angle method or with clearance reduction measurement
Fits on lock nuts inside SKF split pillow block housings (SNL)No
Spanner following DIN 1810 size0
MaterialMedium carbon steel, hardened and tempered
Part of a kitNo
Material handleDurable soft plastic
CoatingBlack phosphated
ColourBlack, with red handle
