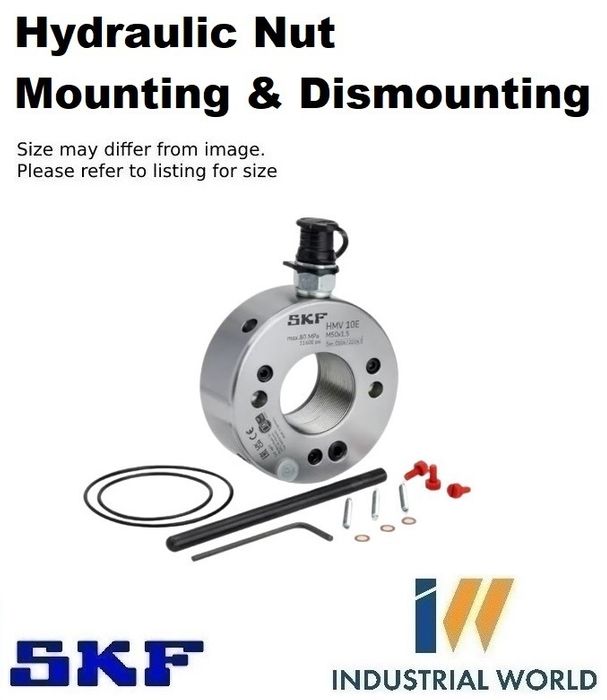

SKF Hydraulic Nut - for mounting and dismounting

Tr345x5
Stock Code:
HMV69E_SKF
$6,150.65 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

HMV 69E
Hydraulic nut for mounting or dismounting of bearings

Facilitates easy and quick application of the high drive-up forces required for mounting bearings on tapered seatings. The hydraulic nut can also be used for dismounting bearings mounted on either adapter or withdrawal sleeves.

  • Quick connection coupling can be fitted on the face or side of the nut
  • A spare set of piston seals and maintenance kit is included
  • Supplied with a quick connection coupling to fit the SKF hydraulic pumps
  • Equipped with eyebolts, two tommy bars and four mating holes on their front face

Properties

TypeMetric thread
Product weight32.5 kg

Dimensions

Connecting threadTr 345x5
Thread formISO 2901-1977 tolerance class 7H
Maximum piston displacement14 mm
Outer diameter456 mm
Piston area29 400 mm²
Piston inner diameter347 mm
Piston outer diameter436 mm
Piston width10 mm
Width54 mm
Product weight32.5 kg

Performance

Maximum pressure400 bar
Maximum pressure40 MPa

Click here for product information

Click Here for Hydraulic Nut Information

Product Guide Attached
