SKF - Tachometer - laser or contact Advanced

Multi-functional TFT Display

Stock Code:

TKRT31_SKF

$1,801.78 incl GST

Stock Locations

Ballarat:

Special Order
Shepparton:

Special Order

Make an Enquiry

Add to Favourites

Description

TKRT 31

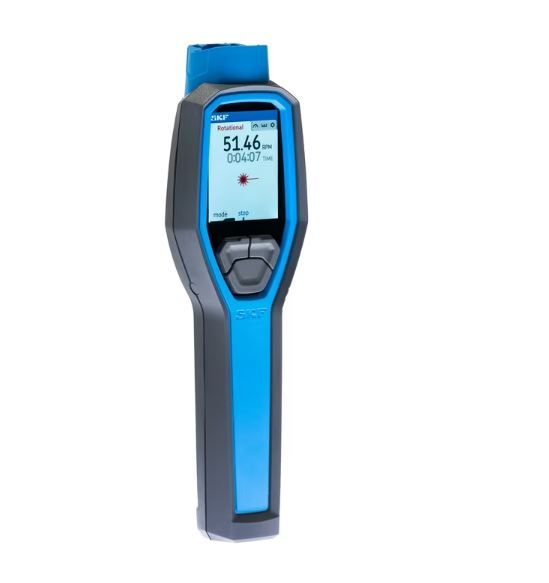

SKF Tachometer TKRT 31

The TKRT 31 is an advanced, multi-functional digital tachometer. The large colour screen provides easy reading. Via the easy-button-control the user can quickly scroll through the menu and start operating. The TKRT uses laser or contact measurement to determine rotational speed, linear speed and distances. The device enables easy, quick measurement at a safe distance from rotational machinery. It has a wide speed range and a number of measurement modes. The TKRT 31 is supplied with a full set of contact adaptors.

Large colour-backlit TFT display
Measures linear and rotational speed, and distances
Includes full set of contact adaptors
Large angular range simplifies measurement, where straight-line access is difficult
Supplied in a handy toolcase for easy storage

Dimensions

Instrument dimensions	295 x 70 x 38 mm
Case dimensions (l x h x w)	260 x 85 x 180 mm

Performance

Optical measurement rotational speed (range)	1 – 99999 r/min
Contact measurement rotational speed (range)	0 – 20000 r/min
Contact measurement linear speed (range)	0.1 – 2000 m/min
Contact measurement distance (range)	25 – 1200 mm

Properties

Recommended applications	Used to determine the speed of motors or shafts, as well as for measuring the speed and length of moving surfaces such as V-belts and conveyor belts.
Display	Multi-line TFT, backlit
Measurement types	Actual, Minimum, Maximum, Average, Total
Optical measurement method	Built in laser
Optical measurement modes	r/min, Hz
Optical measurement accuracy (+/-)	0.01 %
Angle of operation (max)	30 °
Contact measurement rotational speed modes	r/min, Hz
Contact measurement accuracy (+/-)	0.1 %
Contact accessories	Contact adaptor Extension shaft 2x Conical tips 2 x Contact wheels (C=0.1 m and C=6 in)
Linear measurement modes (with contact adaptor)	m/min, m/s, feet/min, feet/s, inch/min, inch/s
Contact measurement accuracy (+/-)	0.1 %
Distance measurement modes (with contact adaptor)	metres, feet, inch
Memory	5 slots MB
Laser type	Visible red line laser
Laser wavelength	650 nm
Laser power max	1 mW
Auto switch off	10 min, 5 min, off
Tripod connector	Yes, (1/4-20 UNC)
Housing material	ABS (plastics)
Colour	Blue Dark Grey
Battery	2x AA (Alkaline (incl.) or Rechargable)
Battery life	8 h
Power adapter	No
Instrument Weight	270 g
Degree of protection (IP)	IP40
Operating temperature range	0 – 40 °C
Relative humidity	10 to 90%, non-condensing
Content	1 x Tachometer TKRT 31 1x Contact adaptor 1 x Extension shaft 2 x conical tips 2 x wheels (C=0.1 m and C=6 in) 2 x AA batteries 1 x Set of reflective tape âÂÂâÂÂâÂÂâÂÂâÂÂâÂÂâÂÂ1 x Instructions for use (MP5509) 1x Carrying case (size A)
Total product weight	0.85 kg
