Shaft Alignment Tool upto 18.5 cm 180 Deg Rotation

Horoizontal only - BYO Phone/Tablet
Stock Code:
TKSA11_SKF
$4,680.84 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

TKSA 11

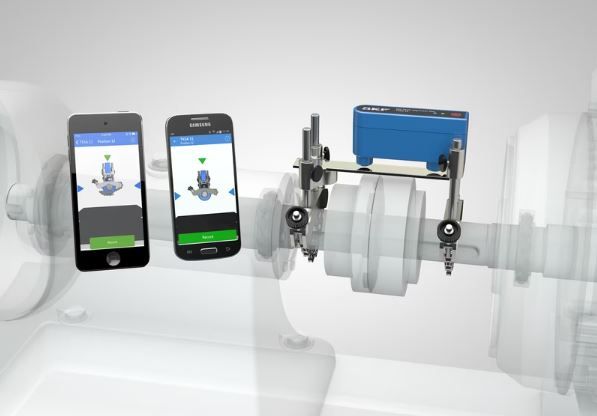

Shaft alignment system with Inductive sensors for smartphones and tablets (iOS and Android)

The TKSA 11 uses smartphones and tablets to intuitively guide the user through the shaft alignment process. The TKSA 11 is designed for core alignment tasks and is very easy-to-use. The small size makes the instrument ideal for quick checks during inspection routes and compact installations. The SKF TKSA uses inductive proximity sensors, enabling accurate and reliable shaft alignment.

  • Live view for intuitive measurements and easy horizontal corrections
  • Fully functional demonstration mode in free TKSA 11 app
  • Fast return on investment and very affordable
  • Inductive proximity sensors are not affected by bright sunlight, increase the robustness of the instrument and reduce the influence of backlash
  • Automatic alignment reports can be customised with notes and pictures and can easily be exported as pdf
  • Also available as complete ready-to-use system with rugged, industrial display device and pre-installed apps TKSA 11D2

Dimensions

Maximum coupling height55 mm
Total product weight2.3 kg

Properties

Alignment methods3 position measurement 9 -12 -3
Recommended applicationsHorizontal shafts
Live correction valuesOnly horizontal
Special featuresAutomatic .pdf reports
Sensors2x Inductive proximity sensors with 3x reference bars
CommunicationsBluetooth 4.0 LE
Measurement distance0 to 185 mm between brackets
Measuring error (percent)2 %
MaterialMeasurement unit: PC/ABS plastic
BatteryRechargeable 1900 mAh LiPo battery
Battery life18 h
Operating temperature range0  –  45 °C
DisplayNone, Smartphone or tablet needed
Operating system
min. Android 9
min. Apple iOS 9
Software updateVia Apple AppStore and Google Play Store
Suitable operating devices
Android Tablet or Smartphone with min. Android 9
Apple iPad, iPhone with min. iOS 9
Laser typeNone
Mounting2x V-brackets (width 15 mm) with chains
Shaft diameter20 to 160 mm
Shaft diameter with extensionUp to 320 mm with optional extension chains (not included)
Power adapter
Charging via micro USB 2.0 port (5V)
Micro USB to USB charging cable included
Compatible with standard 5V USB chargers (not included)
Degree of protection (IP)IP 54
CertificationsCalibration certificate (2 years validity)
Part of a kitno, but also available as TKSA 11/KIT380 or TKSA 11/KIT75
Case dimensions (l x h x w)360 x 110 x 260 mm (14.2 x 4.3 x 10.2 in.)
Content
Measuring unit
3 Reference bars
Set of 2 shaft brackets with chains 480 mm (18.9 in) and rods 80 mm (3.1 in)
Micro USB to USB charging cable
Measuring tape
Certificate of calibration and conformance
Quick start guide
SKF carrying case

Logistics

Product net weight2.3 kg
eClass code23-05-19-01
UNSPSC code41112202

Click here for product information

Click here for catalogue / range information

Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Brand:
    SKF
