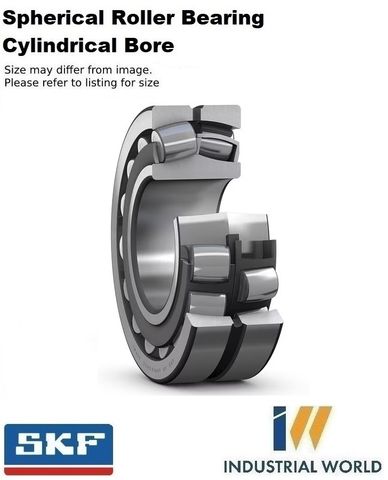

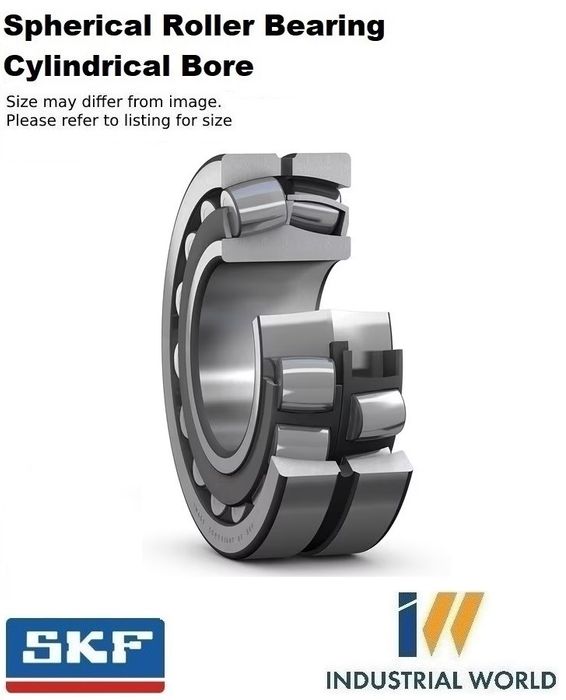

SKF - Spherical Roller Bearing Cylindrical Bore

220 x 370 x 150
Stock Code:
24144CC-W33-C3_SKF
$4,223.58 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

24144CC-W33-C3
Spherical roller bearing with relubrication features

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.

  • Accommodate misalignment
  • High load carrying capacity
  • Relubrication features
  • Low friction and long service life
  • Increased wear resistance

Dimensions

Bore diameter220 mm
Outside diameter370 mm
Width150 mm

Performance

Basic dynamic load rating2 197 kN
Basic static load rating3 350 kN
Reference speed850 r/min
Limiting speed1 200 r/min
SKF performance classSKF Explorer

Properties

Number of rows2
Locating feature, bearing outer ringWithout
Bore typeCylindrical
CageSheet metal
Radial internal clearanceC3
Tolerance classNormal
Tolerance class for dimensionsNormal
Tolerance class for run-outP5
SealingWithout
LubricantNone
Relubrication featureWith
Candidate for remanufacturingYes

Logistics

Product net weight64.7 kg
eClass code23-05-09-11
UNSPSC code31171510


Click here for catalogue information

View product table

Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    220 mm
  • Material:
    Chrome Steel
  • Width:
    150 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Chain Series:
    C3 Clearance
  • Type:
    Taper Bore (K)
  • Size:
    24144
  • Diameter Outside:
    370 mm
