WELD ON HUB 63.5mm Boss, 73.03mm flange

1215 series - PHH W12
Stock Code:
W12_SKF
$49.04 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

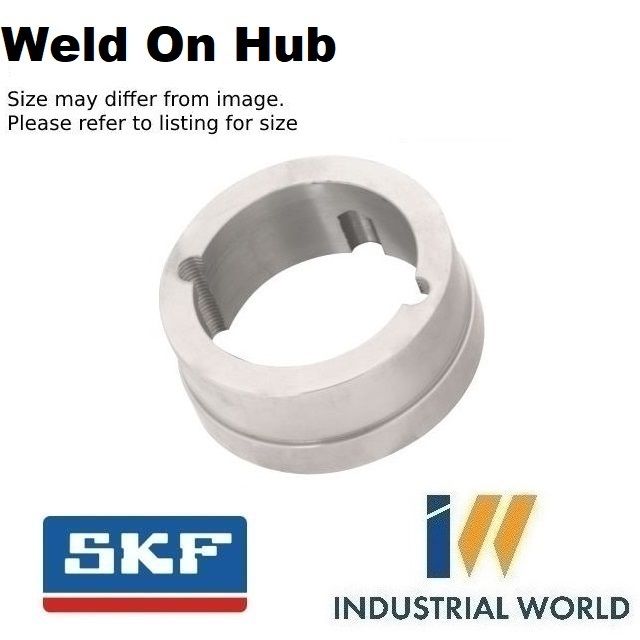

W12 SKF PHH W12

Taper Bore Weld-on Hubs are drilled, tapped and bored to receive standard taper bushings.
The extended flange provides a convenient means for welding devices, which must be firmly fastened to a shaft.

  • Weld-on Hub Type W
  • Suit 1215 taper bush

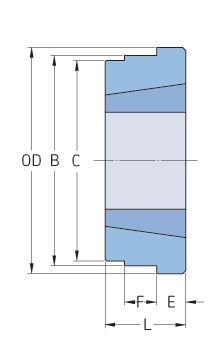

TypeW12
Bushing no.1215
Outside diameter (mm)73.03
Outside diameter (in)2.88
B (mm)63.5
B (in)2.5
L (mm)38.1
L (in)1.5
E (mm)15.88
E (in)0.63
F (mm)9.53
F (in)0.38

Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Material:
    Steel
  • Brand:
    SKF
  • Taperlock Size:
    1215
