WELD ON HUB 111mm Boss, 127mm flange

2517 series - PHH W25
Stock Code:
W25_SKF
$77.22 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

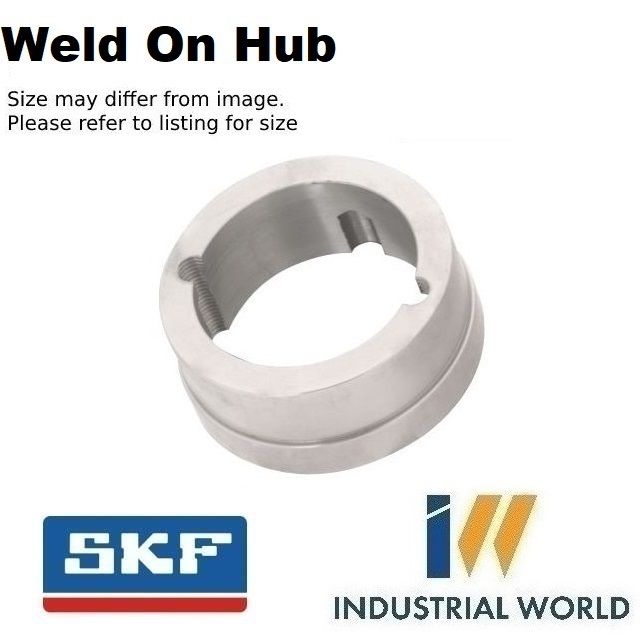

Description

W25 SKF PHH W25

Taper Bore Weld-on Hubs are drilled, tapped and bored to receive standard taper bushings.
The extended flange provides a convenient means for welding devices, which must be firmly fastened to a shaft.

  • Weld-on Hub Type W
  • Suit 2517 taper bush

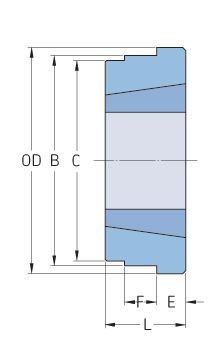

TypeW25
Bushing no.2517
Outside diameter (mm)127
Outside diameter (in)5
B (mm)111.13
B (in)4.38
L (mm)44.4
L (in)1.75
E (mm)19.05
E (in)0.75
F (mm)12.7
F (in)0.5

Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Material:
    Steel
  • Brand:
    SKF
  • Taperlock Size:
    2517
