WELD ON HUB 222.25mm Boss, 254mm flange

4545 series - PHH W45
Stock Code:
W45_SKF
$611.95 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

W45 SKF PHH W45

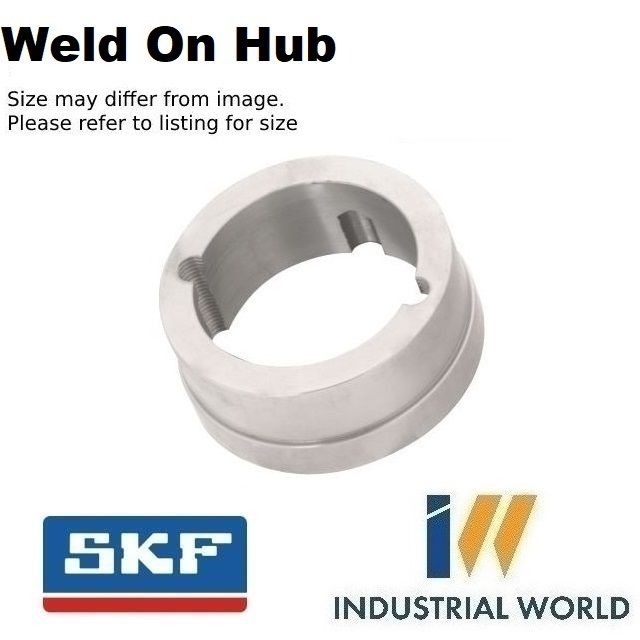

Taper Bore Weld-on Hubs are drilled, tapped and bored to receive standard taper bushings.
The extended flange provides a convenient means for welding devices, which must be firmly fastened to a shaft.

  • Weld-on Hub Type W
  • suit 4545 taper bush

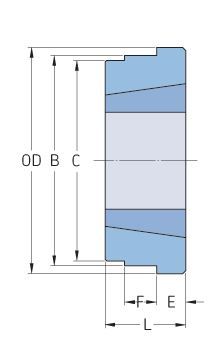

TypeW45
Bushing no.4545
Outside diameter (mm)254
Outside diameter (in)10
B (mm)222.25
B (in)8.75
L (mm)114.3
L (in)4.5
E (mm)38.1
E (in)1.5
F (mm)38.1
F (in)1.5

Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Material:
    Steel
  • Brand:
    SKF
  • Taperlock Size:
    4545
