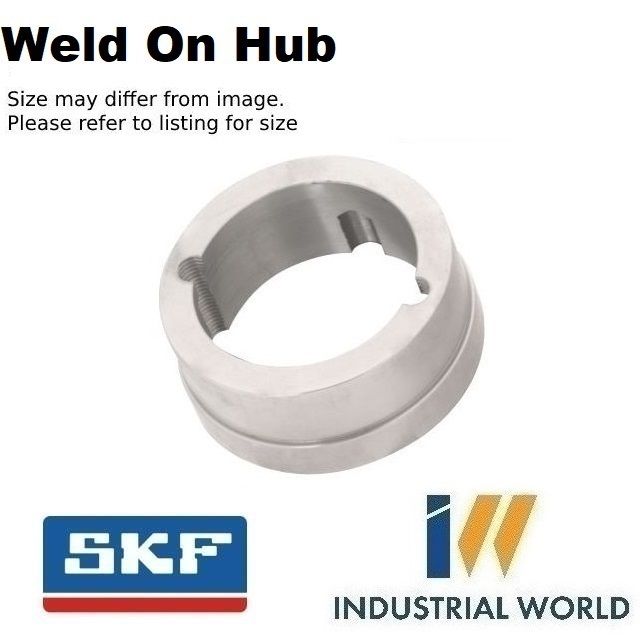

WELD ON HUB 90mm Boss, 95mm flange

2012 series - PHH WH20
Stock Code:
WH20_SKF
$45.51 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

WH20 SKF PHH WH20

Taper Bore Weld-on Hubs are drilled, tapped and bored to receive standard taper bushings.
The extended flange provides a convenient means for welding devices, which must be firmly fastened to a shaft.

  • Weld-on Hub Type WH
  • Suit 2012 taper bush

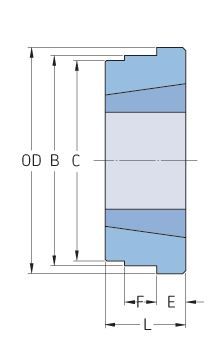

TypeWH20
Bushing no.2012
Outside diameter (mm)95
Outside diameter (in)3.74
B (mm)90
B (in)3.54
L (mm)32
L (in)1.26
E (mm)12
E (in)0.47
F (mm)12
F (in)0.47

Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Material:
    Steel
  • Brand:
    SKF
  • Taperlock Size:
    2012
