WELD ON HUB 65mm Boss, 70mm flange

1210 series - PHH WH12
Stock Code:
WH12_SKF
$30.69 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

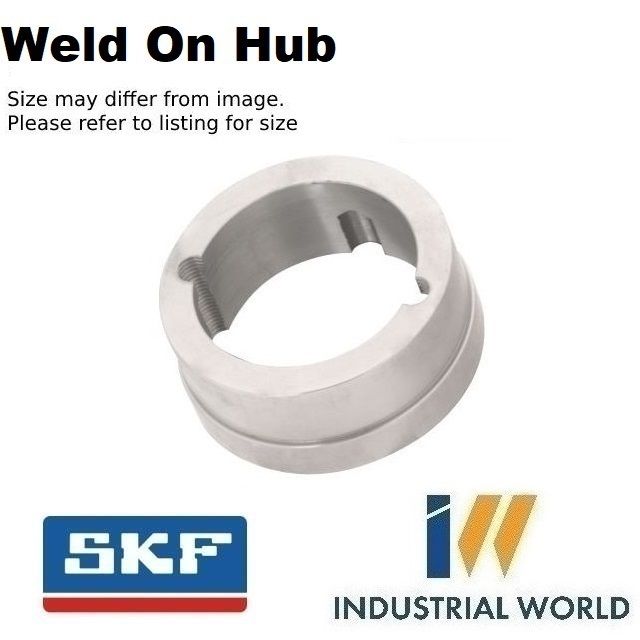

WH12 SKF PHH WH12

Taper Bore Weld-on Hubs are drilled, tapped and bored to receive standard taper bushings.
The extended flange provides a convenient means for welding devices, which must be firmly fastened to a shaft
  • Weld-on Hub Type WH
  • Suit 1210 taper bush

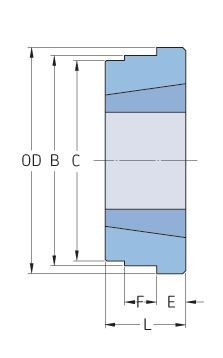

TypeWH12
Bushing no.1210
Outside diameter (mm)70
Outside diameter (in)2.76
B (mm)65
B (in)2.56
L (mm)25
L (in)0.98
E (mm)9
E (in)0.35
F (mm)10
F (in)0.39

Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Material:
    Steel
  • Brand:
    SKF
  • Taperlock Size:
    1210
