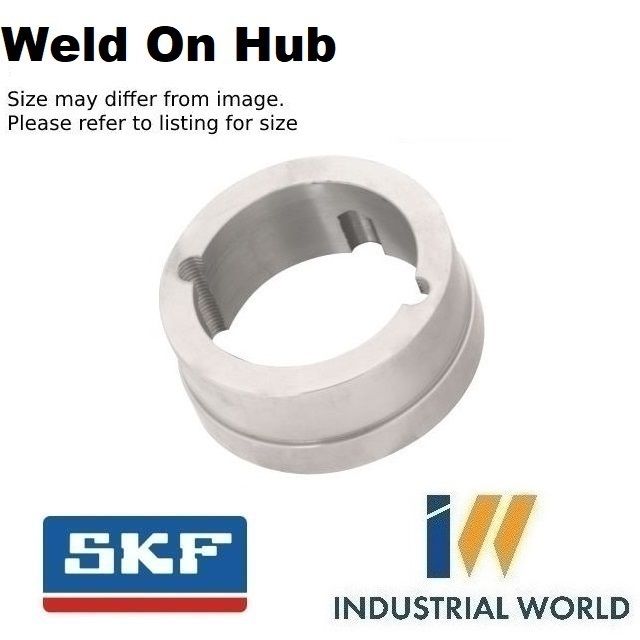

WELD ON HUB 75mm Boss, 80mm flange

1610 series - PHH WH16
Stock Code:
WH16_SKF
$38.35 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

WH16 SKF PHH WH16

Taper Bore Weld-on Hubs are drilled, tapped and bored to receive standard taper bushings.
The extended flange provides a convenient means for welding devices, which must be firmly fastened to a shaft

  • Weld-on Hub Type WH
  • Suit 1610 taper bush

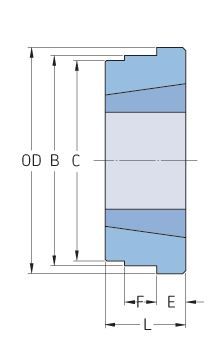

TypeWH16
Bushing no.1610
Outside diameter (mm)80
Outside diameter (in)3.15
B (mm)75
B (in)2.95
L (mm)25
L (in)0.98
E (mm)9
E (in)0.35
F (mm)10
F (in)0.39

Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Material:
    Steel
  • Brand:
    SKF
  • Taperlock Size:
    1610
