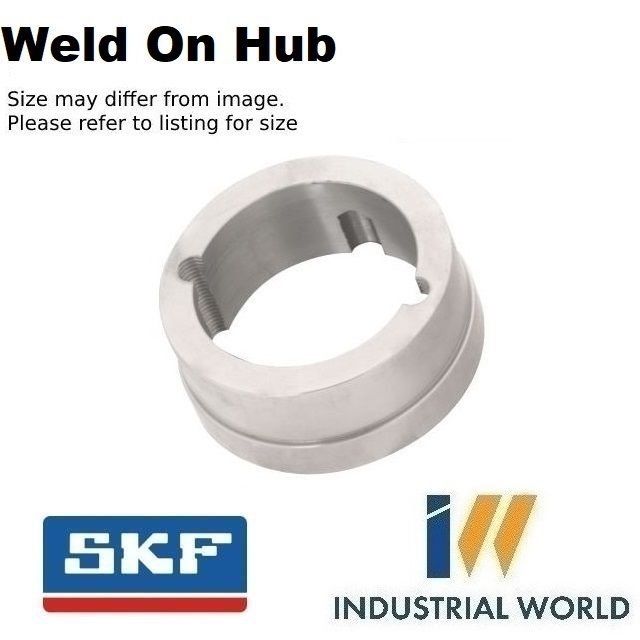

WELD ON HUB 73mm Boss, 83mm flange

1615 series - PHH W16
Stock Code:
W16_SKF
$52.73 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

W16 SKF PHH W16

Taper Bore Weld-on Hubs are drilled, tapped and bored to receive standard taper bushings.
The extended flange provides a convenient means for welding devices, which must be firmly fastened to a shaft.
  • Weld-on Hub Type W
  • Suit 1615 taper bush

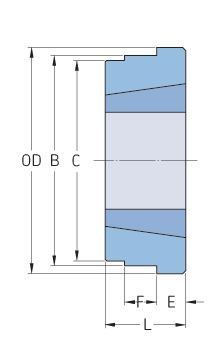

TypeW16
Bushing no.1615
Outside diameter (mm)82.55
Outside diameter (in)3.25
B (mm)73.03
B (in)2.88
L (mm)38.1
L (in)1.5
E (mm)15.88
E (in)0.63
F (mm)9.53
F (in)0.38

Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Material:
    Steel
  • Brand:
    SKF
  • Taperlock Size:
    1615
