SKF - Taperlock Bush - 100mm bore

5050 series 28mm x 16mm key - PHF TB5050X100MM
Stock Code:
5050-100MM_SKF
$311.82 incl GST

Stock Locations

  • Ballarat:
    1 In Stock
  • Shepparton:
    Special Order
1 On Order
Make an Enquiry
Add to Favourites

Description

5050-100MM PHF TB5050X100MM

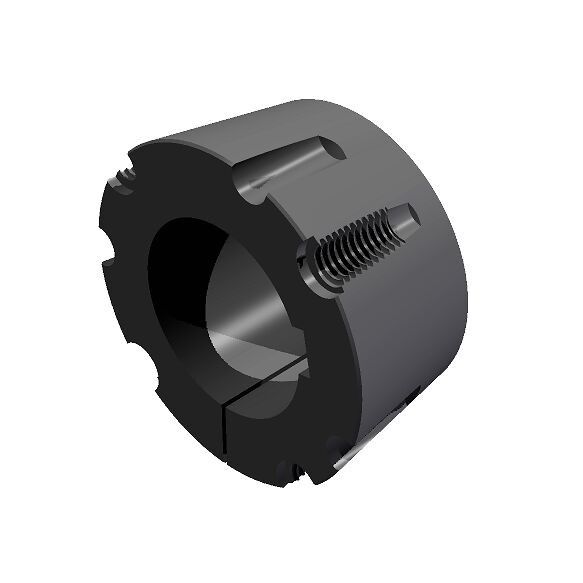

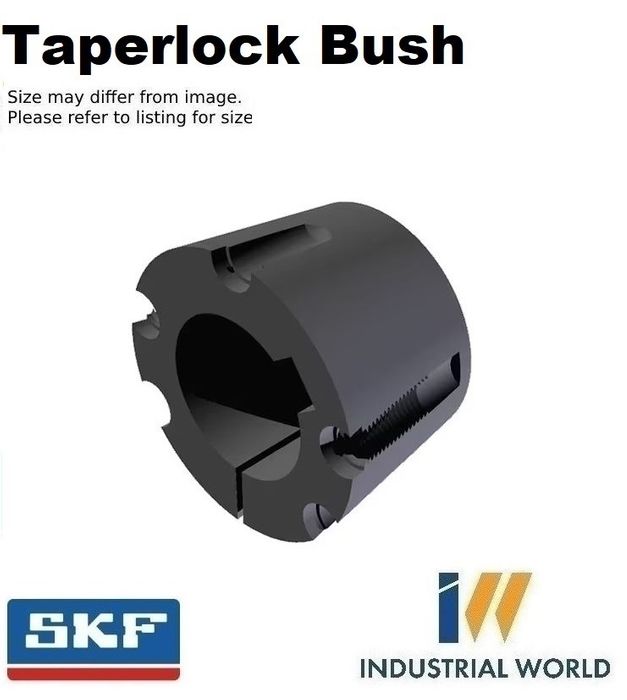

Taper bushing

Bushings and hubs are available in many variants, offering specific benefits in power transmission applications ranging from automotive to papermaking. Taper bushings have a split, flangeless design with a tapered outside diameter that matches the tapered bore of a pulley, sprocket or coupling. The bushings are easy to install and, after being tightened, they provide a firm and secure grip on the shaft.

  • Manufactured according to established market standards
  • Available in a wide range of metric and imperial bore sizes
  • Easily installed and removed using basic tools
  • Excellent clamping force
  • Minimize slippage and fretting corrosion

Dimensions

Bore diameter100 mm
Outside diameter178 mm
Width127 mm

Properties

Bushing number5050
MaterialCast iron


Click here for catalogue information


Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    100 mm
  • Material:
    Cast Iron
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Taperlock Size:
    5050
  • Key Size:
    28mm X 16mm
