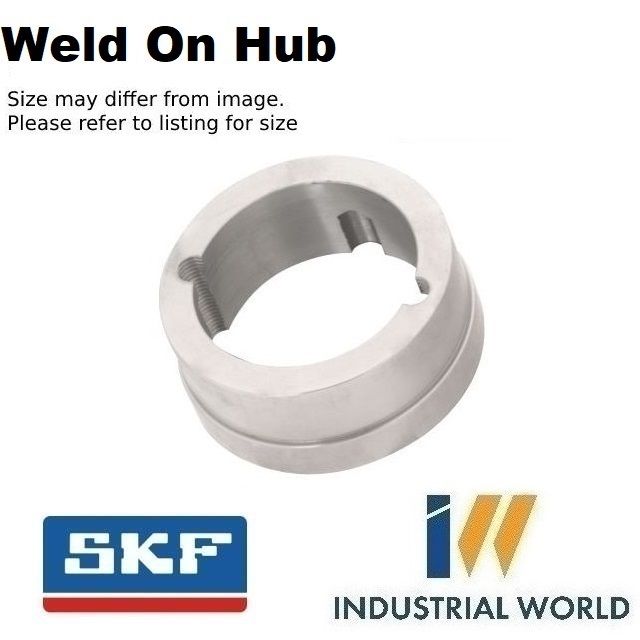

WELD ON HUB 89mm Boss, 102mm flange

2017 series - PHH W20
Stock Code:
W20_SKF
$65.11 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

W20 SKF PHH W20

Taper Bore Weld-on Hubs are drilled, tapped and bored to receive standard taper bushings.
The extended flange provides a convenient means for welding devices, which must be firmly fastened to a shaft.

  • Weld-on Hub Type W
  • Suit 2017 taper bush

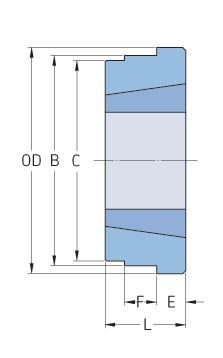

TypeW20
Bushing no.2017
Outside diameter (mm)101.6
Outside diameter (in)4
B (mm)88.9
B (in)3.5
L (mm)44.4
L (in)1.75
E (mm)19.05
E (in)0.75
F (mm)11.91
F (in)0.47

Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Material:
    Steel
  • Brand:
    SKF
  • Taperlock Size:
    2017
