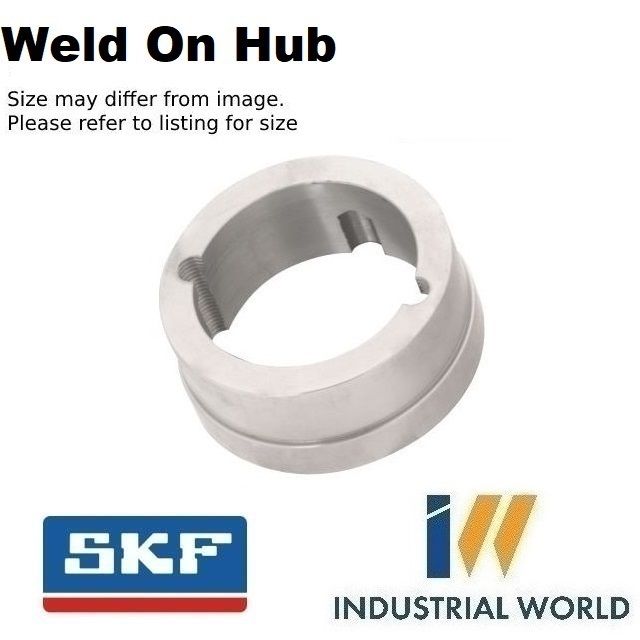

WELD ON HUB 159mm Boss, 184mm flange

3535 series - PHH W35
Stock Code:
W35_SKF
$244.23 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

W35 SKF PHH W35

Taper Bore Weld-on Hubs are drilled, tapped and bored to receive standard taper bushings.
The extended flange provides a convenient means for welding devices, which must be firmly fastened to a shaft.

  • Weld-on Hub Type W
  • Suit 3535 taper bush

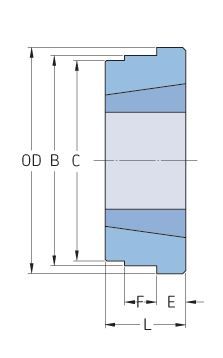

TypeW35
Bushing no.3535
Outside diameter (mm)184.15
Outside diameter (in)7.25
B (mm)158.75
B (in)6.25
L (mm)88.9
L (in)3.5
E (mm)31.75
E (in)1.25
F (mm)25.4
F (in)1

Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Material:
    Steel
  • Brand:
    SKF
  • Taperlock Size:
    3535
