NTN - Deep Groove Ball Bearing

30 x 72 x 19
Stock Code:
6306-Z-NR-C3_NTN
$58.48 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

6306-Z-NR-C3

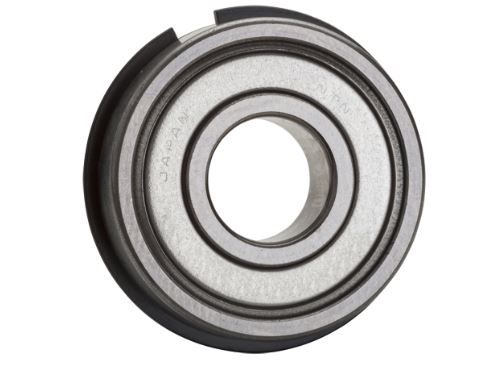

6306-Z-NR-C3 Single Row Metric Deep Groove Ball Bearing

30.00 mm ID x 72.00 mm OD x 19.00 mm Width

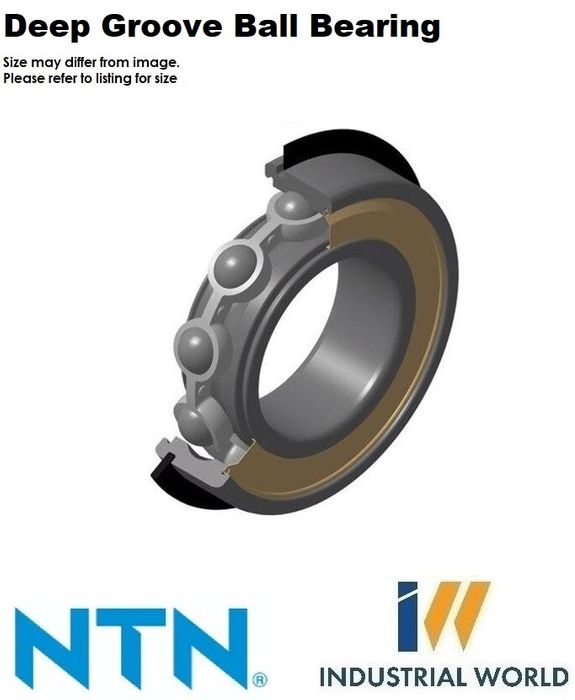

Deep groove ball bearings are particularly versatile. They are suitable for high and very high speeds, accommodate radial and axial loads in both directions and require little maintenance. Deep groove ball bearings are the most widely used bearing.

Deep groove ball bearing, radial contact, pressed steel cage, snap ring & groove on outer diameter, shield on one side

• Cylindrical Bore
• C3 Clearance
• Steel Cage
• (1) Metal Shield
• OD Snap Ring and Groove



Click here for product information

Click here for general NTN ball bearing information

Click here for bearing specific data

Product guide attached


Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    30 mm
  • Material:
    Chrome steel
  • Width:
    19 mm
  • Brand:
    NTN
  • Metric/Imperial:
    Metric
  • Chain Series:
    C3 Clearance
  • Type:
    Z - Metal Shield - 1 Side
  • Diameter Outside:
    72 mm
  • Style:
    Snap ring groove with snap ring
