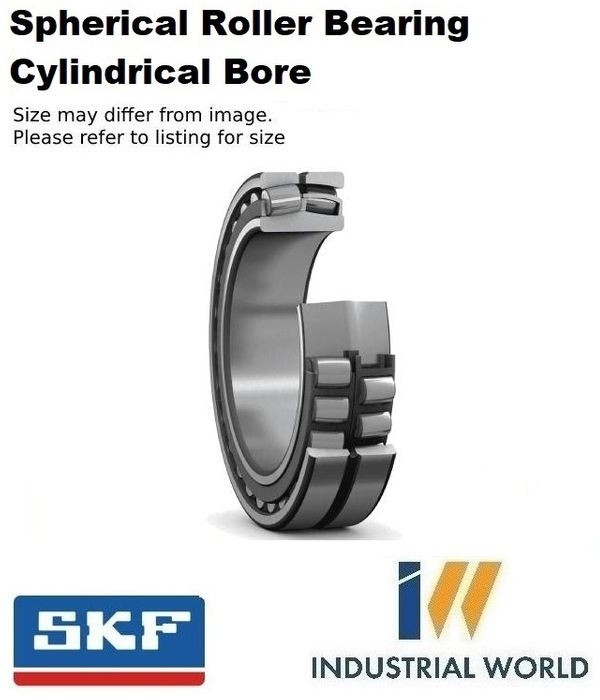

SKF - Spherical Roller Bearing Cylindrical Bore

320 x 480 x 121
Stock Code:
23064CC-W33_SKF
$5,173.89 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

23064 CC/W33
Spherical roller bearing with relubrication features

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.

  • Accommodate misalignment
  • High load carrying capacity
  • Relubrication features
  • Low friction and long service life
  • Increased wear resistance

Dimensions

Bore diameter320 mm
Outside diameter480 mm
Width121 mm

Performance

Basic dynamic load rating2 348 kN
Basic static load rating3 800 kN
Reference speed1 100 r/min
Limiting speed1 400 r/min
SKF performance classSKF Explorer

Properties

Number of rows2
Locating feature, bearing outer ringWithout
Bore typeCylindrical
CageSheet metal
Radial internal clearanceCN
Tolerance classNormal
Tolerance class for dimensionsNormal
Tolerance class for run-outNormal
SealingWithout
LubricantNone
Relubrication featureWith
Candidate for remanufacturingYes


Click here for catalogue information

View product table


Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    320 mm
  • Material:
    Chrome Steel
  • Width:
    121 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Chain Series:
    Standard Clearance
  • Type:
    Cylindrical Bore
  • Size:
    23064
  • Diameter Outside:
    480 mm
