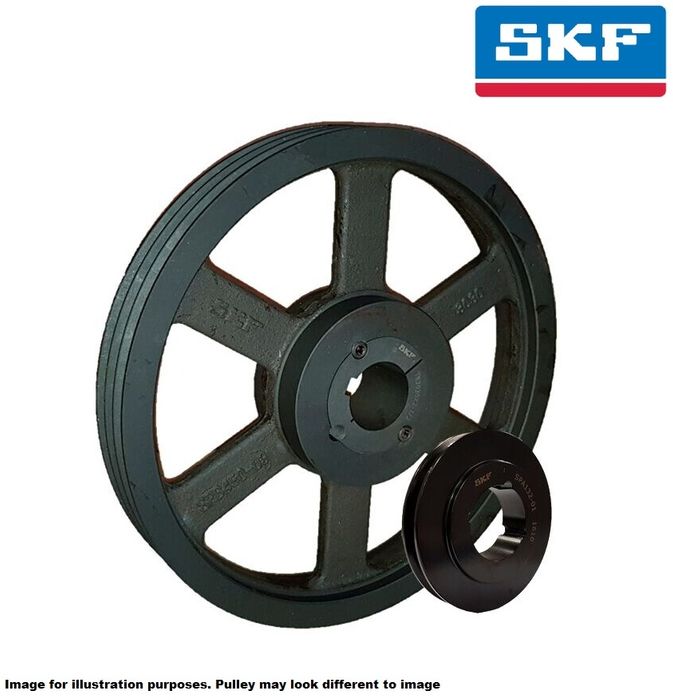

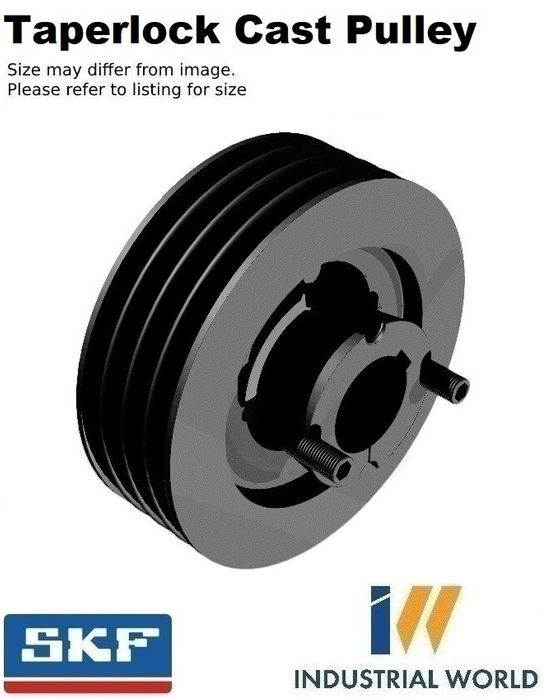

SKF - Taperlock Cast Pulley - 3 ROW - SPB - 175 mm

taperlock bush 2517 (PHP 3SPB175TB)
Stock Code:
3SPB175_SKF
$127.73 incl GST

Stock Locations

  • Ballarat:
    4 In Stock
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

PHP 3SPB175TB (3SPB175)
Wedge belt pulley, taper bushed

Wedge belt pulleys are designed to be used with wedge belts. They are available with one or several grooves, enabling multiple belts to run in parallel. The pulleys are easily mounted on the shafts using the appropriate taper bushings.

  • Manufactured according to international standards
  • Phosphate-coated for corrosion resistance
  • Statically balanced (dynamic balancing available on request)
  • Superior quality can enhance belt life and reduce total cost of ownership of the machinery
Properties
  • SPB Section
  • 175.00 mm Pitch Diameter (PCD)
  • 3 Grooves
  • 2517 Bushing Series
  • Cast Iron

Specifications

Item Type V-PULLEY
Section SPB
Material Cast Iron
PCD 175.000
Number of Grooves 3.000
Taperlock Series 2517
Reach Series Standard Reach
Pulley Type Taperlock
Weight (Kg) 6.100
UNSPSC Code 31171804
UNSPSC Description Sheaves or pulleys
Unit Of Measure EA



Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au



Details

  • Material:
    CAST IRON
  • Brand:
    SKF
  • Taperlock Size:
    2517
  • Number of Rows:
    3
  • Type:
    SPB
  • Diamater PCD:
    175 mm
  • Diameter Outside:
    182 mm
  • Belt Type:
    B / SPB
