SKF - Taperlock Cast Pulley - 4 ROW - SPB - 160 mm

taperlock bush 2517 (PHP 4SPB160TB)
Stock Code:
4SPB160_SKF
$127.42 incl GST

Stock Locations

  • Ballarat:
    1 In Stock
  • Shepparton:
    Special Order
1 On Order
Make an Enquiry
Add to Favourites

Description

PHP 4SPB160TB (4SPB160)
Wedge belt pulley, taper bushed

Wedge belt pulleys are designed to be used with wedge belts. They are available with one or several grooves, enabling multiple belts to run in parallel. The pulleys are easily mounted on the shafts using the appropriate taper bushings.

  • Manufactured according to international standards
  • Phosphate-coated for corrosion resistance
  • Statically balanced (dynamic balancing available on request)
  • Superior quality can enhance belt life and reduce total cost of ownership of the machinery

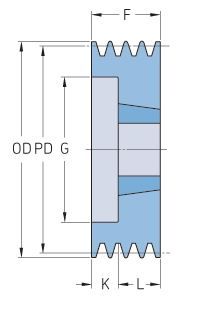

Dimensions

Bore max60 mm
Bore min16 mm
Outside diameter167 mm
Pitch diameter160 mm
Width, total82 mm

Properties

Bushing number2517
MaterialCast Iron
Number of grooves4
Pulley type3
SectionSPB

Logistics

Product net weight5.64 kg
eClass code23-17-02-08
UNSPSC code24101613

Click here for catalogue information

Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Material:
    CAST IRON
  • Brand:
    SKF
  • Taperlock Size:
    2517
  • Number of Rows:
    4
  • Type:
    SPB
  • Diamater PCD:
    160 mm
  • Diameter Outside:
    167 mm
  • Belt Type:
    B / SPB
