SKF - Taperlock Cast Pulley - 4 ROW - SPB - 630 mm

taperlock bush 3535 (PHP 4SPB630TB)
Stock Code:
4SPB630_SKF
$822.45 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

PHP 4SPB630TB (4SPB630)
Wedge belt pulley, taper bushed

Wedge belt pulleys are designed to be used with wedge belts. They are available with one or several grooves, enabling multiple belts to run in parallel. The pulleys are easily mounted on the shafts using the appropriate taper bushings.

  • Manufactured according to international standards
  • Phosphate-coated for corrosion resistance
  • Statically balanced (dynamic balancing available on request)
  • Superior quality can enhance belt life and reduce total cost of ownership of the machinery

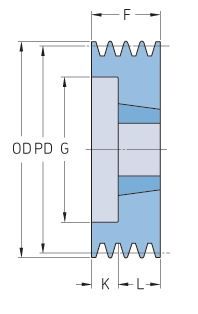

Dimensions

Bore max90 mm
Bore min35 mm
Hub diameter170 mm
Outside diameter637 mm
Pitch diameter630 mm
Width, total82 mm

Properties

Bushing number3535
MaterialCast Iron
Number of grooves4
Pulley type4
SectionSPB

Logistics

Product net weight44.5 kg
eClass code23-17-02-08
UNSPSC code24101613

Click here for catalogue information

Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Material:
    CAST IRON
  • Brand:
    SKF
  • Taperlock Size:
    3535
  • Number of Rows:
    4
  • Type:
    SPB
  • Diamater PCD:
    630 mm
  • Diameter Outside:
    637 mm
  • Belt Type:
    B / SPB
