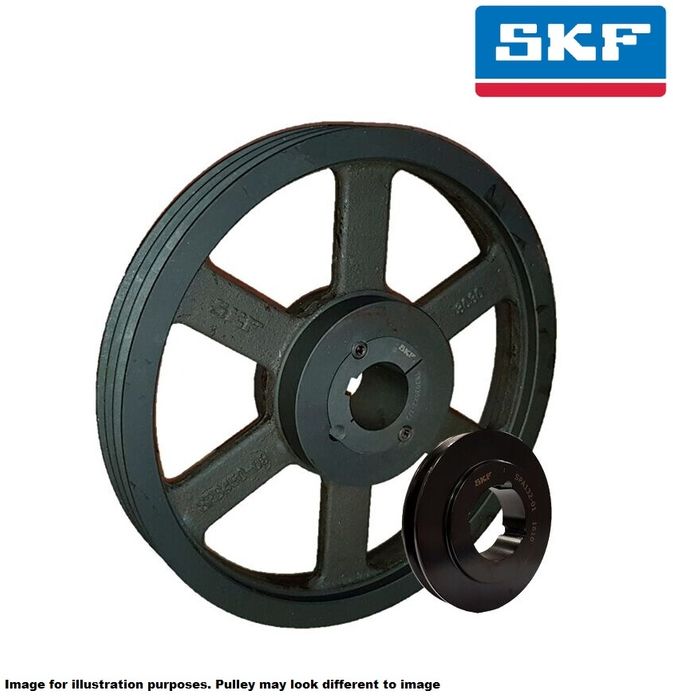

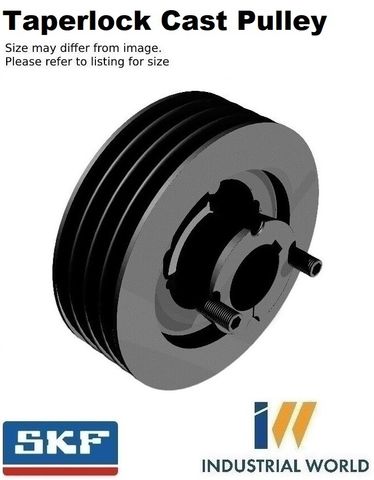

SKF - Taperlock Cast Pulley - 3 ROW - SPA - 112 mm

taperlock bush 2012 (PHP 3SPA112TB)
Stock Code:
3SPA112_SKF
$44.48 incl GST

Stock Locations

  • Ballarat:
    1 In Stock
  • Shepparton:
    Special Order
1 On Order
Make an Enquiry
Add to Favourites

Description

PHP 3SPA112TB (3SPA112)
Wedge belt pulley, taper bushed

Wedge belt pulleys are designed to be used with wedge belts. They are available with one or several grooves, enabling multiple belts to run in parallel. The pulleys are easily mounted on the shafts using the appropriate taper bushings.

  • Manufactured according to international standards
  • Phosphate-coated for corrosion resistance
  • Statically balanced (dynamic balancing available on request)
  • Superior quality can enhance belt life and reduce total cost of ownership of the machinery

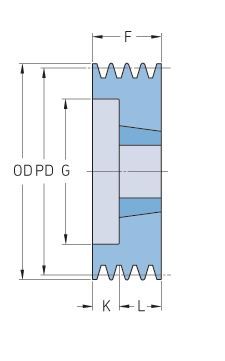

Dimensions

Bore max50 mm
Bore min14 mm
Outside diameter117.5 mm
Pitch diameter112 mm
Width, total50 mm

Properties

Bushing number2012
MaterialCast Iron
Number of grooves3
Pulley type6
SectionSPA

Logistics

Product net weight1.54 kg
eClass code23-17-02-08
UNSPSC code24101613

Click here for catalogue information

Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Material:
    CAST IRON
  • Brand:
    SKF
  • Taperlock Size:
    2012
  • Number of Rows:
    3
  • Type:
    SPA
  • Diamater PCD:
    112 mm
  • Diameter Outside:
    117.5 mm
  • Belt Type:
    A / SPA
