SKF - Taperlock Cast Pulley - 10 ROW - SPC - 475 m

taperlock bush 5050 (PHP 10SPC475TB)
Stock Code:
10SPC475_SKF
$2,658.52 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

PHP 10SPC475TB 10SPC475
Wedge belt pulley, taper bushed

Wedge belt pulleys are designed to be used with wedge belts. They are available with one or several grooves, enabling multiple belts to run in parallel. The pulleys are easily mounted on the shafts using the appropriate taper bushings.

  • Manufactured according to international standards
  • Phosphate-coated for corrosion resistance
  • Statically balanced (dynamic balancing available on request)
  • Superior quality can enhance belt life and reduce total cost of ownership of the machinery

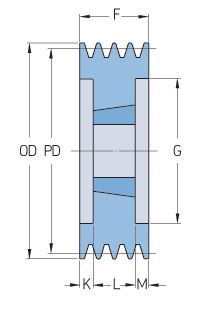

Dimensions

Bore max125 mm
Bore min70 mm
Hub diameter245 mm
Outside diameter484.6 mm
Pitch diameter475 mm
Width, total264 mm

Properties

Bushing number5050
MaterialCast Iron
Number of grooves10
Pulley type5
SectionSPC

Logistics

Product net weight82 kg
eClass code23-17-02-08
UNSPSC code24101613

Click here for catalogue information

Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Material:
    CAST IRON
  • Brand:
    SKF
  • Taperlock Size:
    5050
  • Number of Rows:
    10
  • Type:
    SPC
  • Diamater PCD:
    475 mm
  • Diameter Outside:
    484.6 mm
  • Belt Type:
    C / SPC
