SKF - Taperlock Cast Pulley - 6 ROW - SPB - 500 mm

taperlock bush 4040 (PHP 6SPB500TB)
Stock Code:
6SPB500_SKF
$862.40 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
1 On Order

Description

PHP 6SPB500TB (6SPB500)
Wedge belt pulley, taper bushed

Wedge belt pulleys are designed to be used with wedge belts. They are available with one or several grooves, enabling multiple belts to run in parallel. The pulleys are easily mounted on the shafts using the appropriate taper bushings.

  • Manufactured according to international standards
  • Phosphate-coated for corrosion resistance
  • Statically balanced (dynamic balancing available on request)
  • Superior quality can enhance belt life and reduce total cost of ownership of the machinery

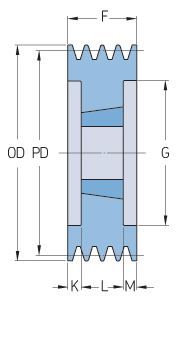

Dimensions

Bore max100 mm
Bore min40 mm
Hub diameter191 mm
Outside diameter507 mm
Pitch diameter500 mm
Width, total120 mm

Properties

Bushing number4040
MaterialCast Iron
Number of grooves6
Pulley type5
SectionSPB

Logistics

Product net weight40.7 kg
eClass code23-17-02-08
UNSPSC code24101613

Click here for catalogue information

Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Material:
    CAST IRON
  • Brand:
    SKF
  • Taperlock Size:
    4040
  • Number of Rows:
    6
  • Type:
    SPB
  • Diamater PCD:
    500 mm
  • Diameter Outside:
    507 mm
  • Belt Type:
    B / SPB
