SKF - Taperlock Cast Pulley - 2 ROW - SPA - 180 mm

taperlock bush 2012 (PHP 2SPA180TB)
Stock Code:
2SPA180_SKF
$83.12 incl GST

Stock Locations

  • Ballarat:
    3 In Stock
  • Shepparton:
    Special Order
2 On Order
Make an Enquiry
Add to Favourites

Description

PHP 2SPA180TB 2SPA180

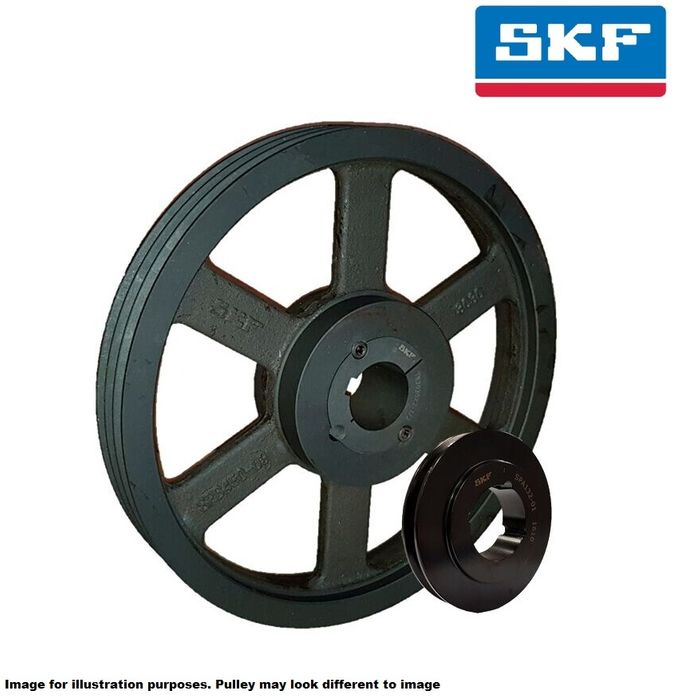

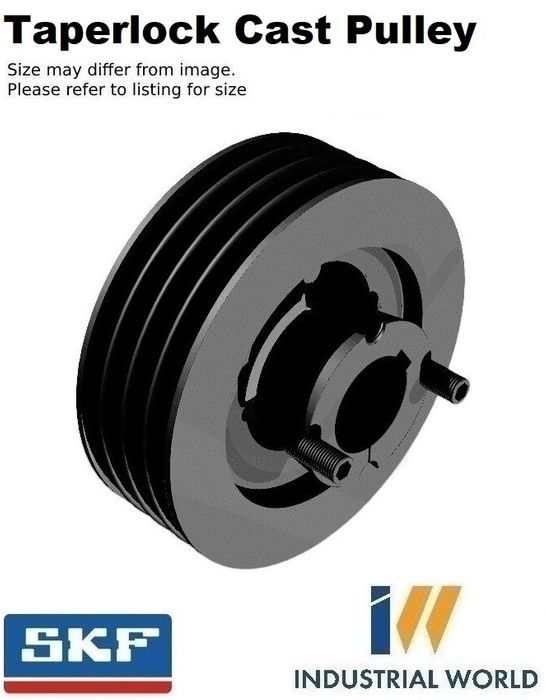

Wedge belt pulley, taper bushed

Wedge belt pulleys are designed to be used with wedge belts. They are available with one or several grooves, enabling multiple belts to run in parallel. The pulleys are easily mounted on the shafts using the appropriate taper bushings.

  • Manufactured according to international standards
  • Phosphate-coated for corrosion resistance
  • Statically balanced (dynamic balancing available on request)
  • Superior quality can enhance belt life and reduce total cost of ownership of the machinery

Dimensions

Bore max50 mm
Bore min14 mm
Hub diameter100 mm
Outside diameter185.5 mm
Pitch diameter180 mm
Width, total35 mm

Properties

Bushing number2012
MaterialCast Iron
Number of grooves2
Pulley type7
SectionSPA

Logistics

Product net weight3.73 kg
eClass code23-17-02-08
UNSPSC code24101613

Click here for catalogue information

Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Material:
    CAST IRON
  • Brand:
    SKF
  • Taperlock Size:
    2012
  • Number of Rows:
    2
  • Type:
    SPA
  • Diamater PCD:
    180 mm
  • Diameter Outside:
    185.5 mm
  • Belt Type:
    A / SPA
