SKF - Taperlock Cast Pulley - 5 ROW - SPB - 1000 m

taperlock bush 4545 (PHP 5SPB1000TB)
Stock Code:
5SPB1000_SKF
$2,362.54 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

PHP 5SPB1000TB (5SPB1000)
Wedge belt pulley, taper bushed

Wedge belt pulleys are designed to be used with wedge belts. They are available with one or several grooves, enabling multiple belts to run in parallel. The pulleys are easily mounted on the shafts using the appropriate taper bushings.

  • Manufactured according to international standards
  • Phosphate-coated for corrosion resistance
  • Statically balanced (dynamic balancing available on request)
  • Superior quality can enhance belt life and reduce total cost of ownership of the machinery

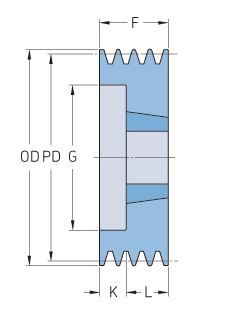

Dimensions

Bore max110 mm
Bore min55 mm
Hub diameter225 mm
Outside diameter1 007 mm
Pitch diameter1 000 mm
Width, total101 mm

Properties

Bushing number4545
MaterialCast Iron
Number of grooves5
Pulley type4
SectionSPB

Logistics

Product net weight110 kg
eClass code23-17-02-08
UNSPSC code24101613

Click here for catalogue information

Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Material:
    CAST IRON
  • Brand:
    SKF
  • Taperlock Size:
    4545
  • Number of Rows:
    5
  • Type:
    SPB
  • Diamater PCD:
    1000 mm
  • Diameter Outside:
    1007 mm
  • Belt Type:
    B / SPB
