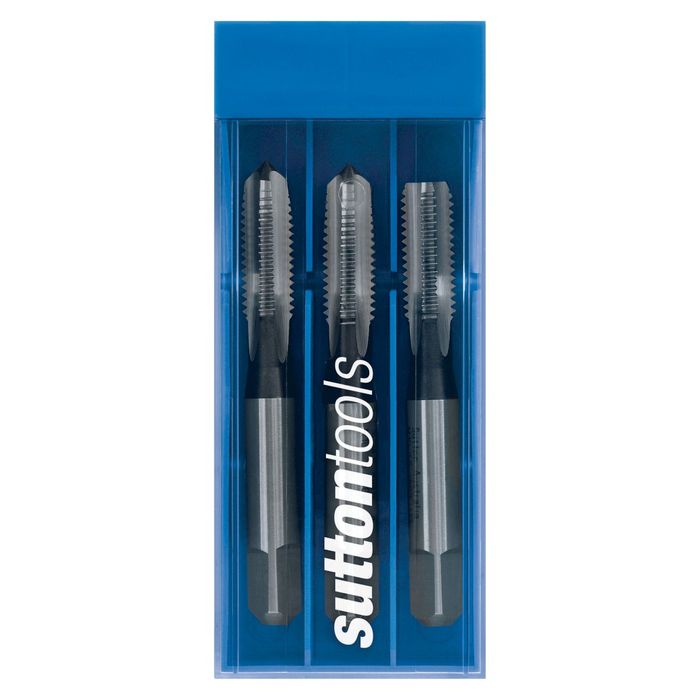

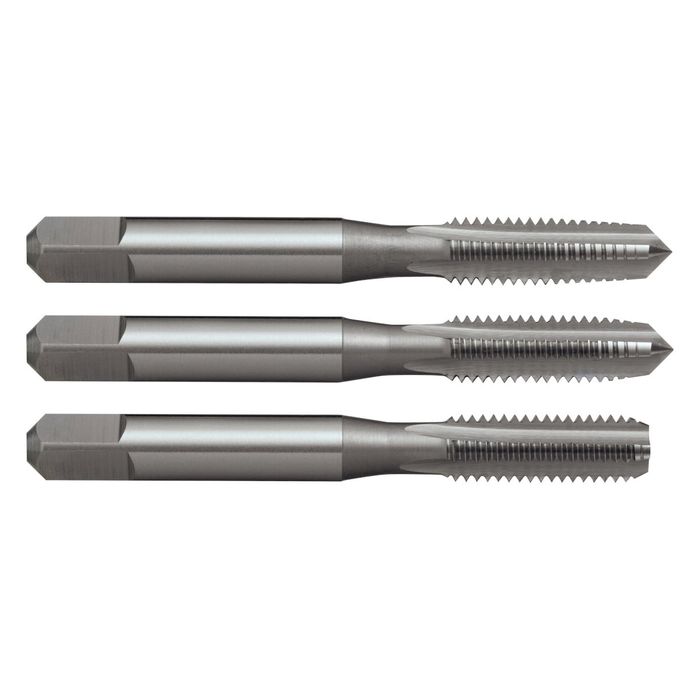

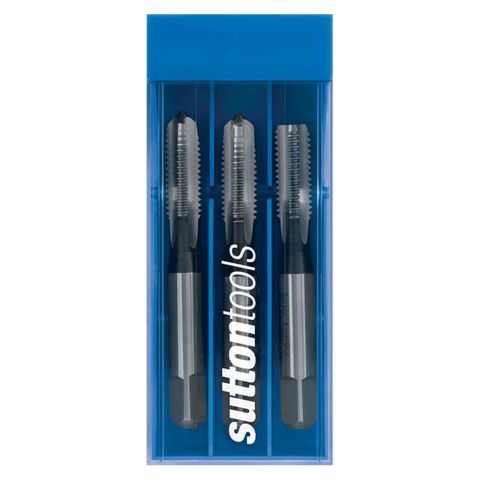

Sutton - Straight Flute Tap Set

M10 x1.50 ISO529 HSS
Stock Code:
SUT-T9011000
$73.33 incl GST

Stock Locations

  • Ballarat:
    2 In Stock
  • Shepparton:
    Special Order

Description

DESCRIPTION

Straight Flute Tap Sets – M

T901

  • General purpose use
  • Suitable for materials up to 1000N/mm2
  • Suitable for both hand and machine operations
  • Depths up to approx. 1 x d1

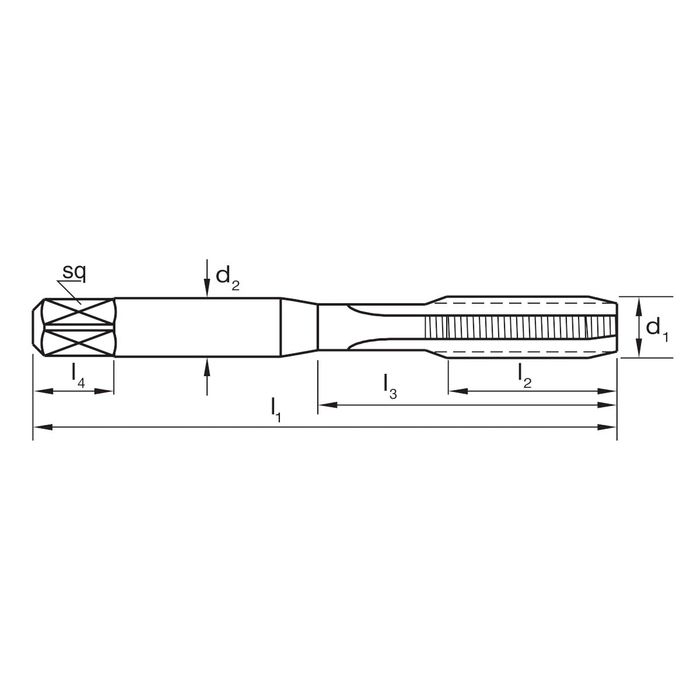

Specifications

  • d1 M10
  • Limit - ISO 2 / 6H
  • Length l1 (mm) 80
  • Length l2 (mm) 24
  • Diameter d2 (mm) 10
  • sq 8
  • Length l4 (mm) 11
  • z 4
  • Pitch 1.50

Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Brand:
    SUTTON
