SKF Metric Thrust Bearing

Stock Code:
51240-M_SKF
$1,197.90 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

51240 M

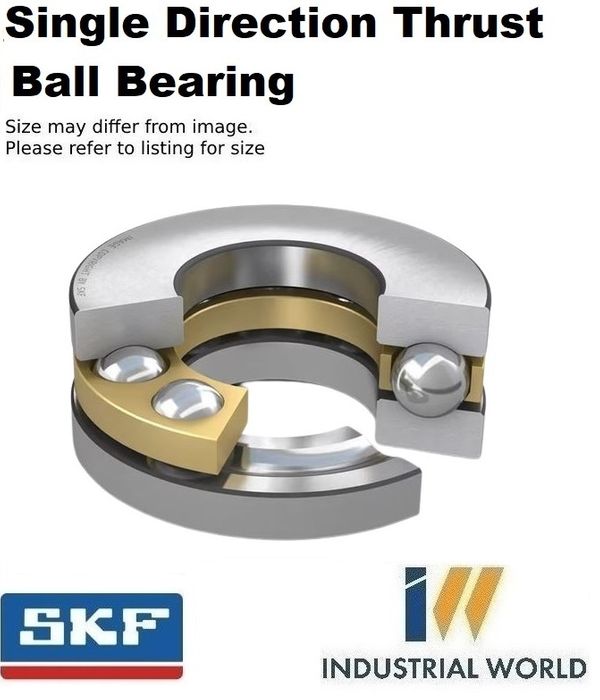

Single direction thrust ball bearing

Single direction thrust ball bearings can accommodate axial loads in one direction. They must not be subjected to any radial load. Their separable components facilitate mounting/dismounting and maintenance inspections. Many of the components are interchangeable. The shaft washers have a ground bore that enables an interference fit.

  • Separable design facilitates mounting/dismounting and maintenance inspections
  • Interchangeable components
  • Ground bore of shaft washers enable interference fit

Dimensions

Bore diameter200 mm
Outside diameter280 mm
Height62 mm

Performance

Basic dynamic load rating332 kN
Basic static load rating1 250 kN
Reference speed1 000 r/min
Limiting speed1 400 r/min

Properties

Axial load capabilitySingle-direction
Number of rows1
CageMachined metal
Housing washer typeFlat
Tolerance classNormal
Material, bearingBearing steel
CoatingWithout

Logistics

Product net weight12 kg
eClass code23-05-10-01
UNSPSC code3117150

Click here for catalogue information

View product table

Product Guide Attached
