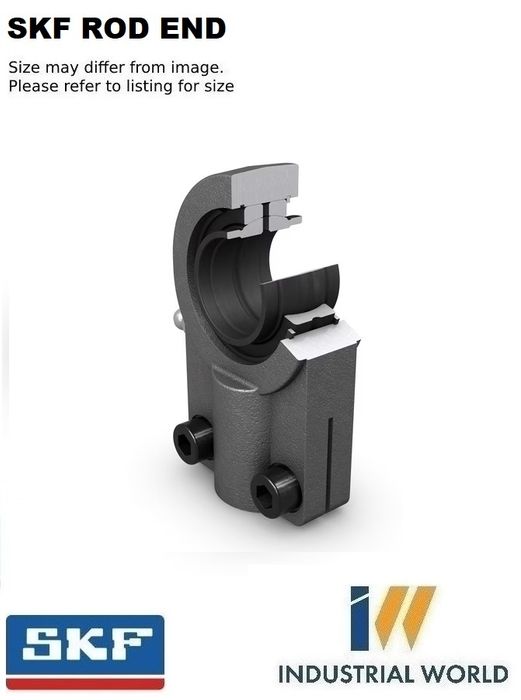

SKF HYDRAULIC ROD END

Stock Code:

SIQG63ES_SKF

$596.51 incl GST

Stock Locations

Ballarat:

Special Order
Shepparton:

Special Order

Make an Enquiry

Add to Favourites

Description

SIQG 63 ES

Rod end, requires maintenance, female thread with clamping screws

These SKF rod ends contain a spherical plain bearing with a steel/steel sliding contact surface combination. The inner ring is extended on both sides. The bearing requires maintenance and can be relubricated via grease fitting in the housing and for sizes 16 and larger also via the shaft. The female thread is available with a left- (prefix SIL) or right-hand thread.

Easy to relubricate
Suitable for heavy static, alternating or impact loads
Simple and ready-to-mount
Slotted shank with clamping screws
Suitable for hydraulic cylinders
Bearing can be exchanged

Dimensions

Bore diameter, bearing inner ring	63 mm
Outside diameter, housing eye	138 mm
Width, bearing inner ring	63 mm
Thread designation	M 48x2
Width, housing eye	53.5 mm
Centre height, housing (from end of shank)	140 mm
Housing length, total	213.5 mm

Performance

Basic dynamic load rating	255 kN
Basic static load rating	375 kN

Properties

Sliding contact surface combination	Steel/steel, standard
Material, housing	Steel
Material, inner ring	Bearing steel
Material, outer ring	Bearing steel
Maintenance	Relubrication required
Attachment feature, rod end shank	Right-hand female thread and clamping screws
Sealing	Without
