SKF Thrust Bearing

Stock Code:
53207_SKF
$81.58 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

53207

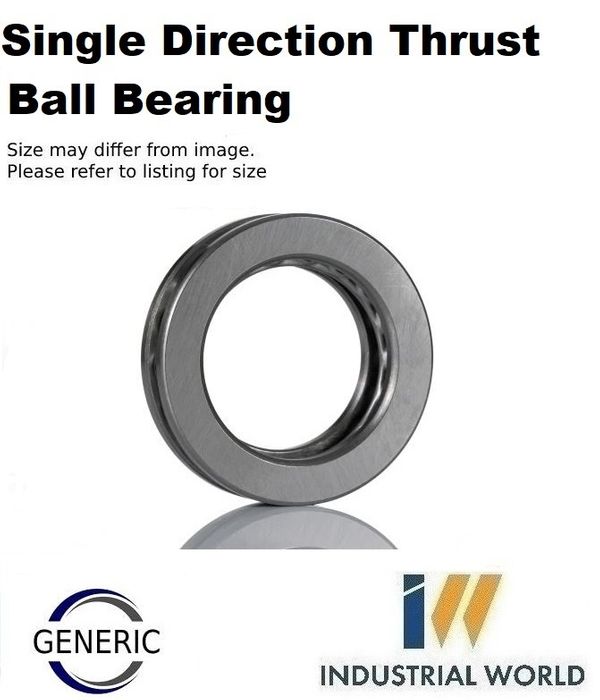

Single direction thrust ball bearing with sphered housing washer

Single direction thrust ball bearings, with sphered housing washer, can accommodate axial loads in one direction. They must not be subjected to any radial load. Many of the components are interchangeable. The shaft washers have a ground bore that enables an interference fit. The sphered housing washers can accommodate initial misalignment when configured correctly with a sphered seat washer or a machine component with a sphered surface.

  • Separable design facilitates mounting/dismounting and maintenance inspections
  • Interchangeable components
  • Ground bore of shaft washers enables interference fit
  • Sphered housing washers can accommodate initial misalignment

Dimensions

Bore diameter35 mm
Outside diameter62 mm
Height19.9 mm
Radius of aligning surface50 mm

Performance

Basic dynamic load rating35.1 kN
Basic static load rating73.5 kN
Reference speed4 000 r/min
Limiting speed5 600 r/min

Properties

Axial load capabilitySingle-direction
Number of rows1
CageSheet metal
Housing washer typeSphered
Tolerance classNormal
Material, bearingBearing steel
CoatingWithout

Logistics

Product net weight0.21 kg
eClass code23-05-10-01
UNSPSC code31171507

Click here for catalogue information

View product table

Product Guide Attached
