SPHERICAL PLAIN BEARING

Stock Code:
HCOM20_AURORA
$330.24 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

HCOM20 AURORA

Spherical Plain Bearing

Details

  • 1 1/4" ID x 2 3/8" OD x 1 3/16" Inner Ring Width
  • 15/16" Outer Ring Width
  • Unsealed Spherical Plain Bearing

Specifications

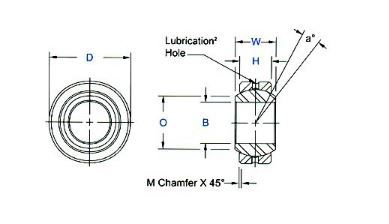

  • Part Number - HCOM-20
  • B - Ball Bore -1.2500 in
  • D - Outside Diameter - 2.3750 in
  • H - Race Width - .937 in
  • W - Ball Width - 1.187 in
  • O - Ball Shoulder Diameter - 1.610 in
  • M - Chamfer - .032 in
  • Ball Diameter - 2.000 in
  • a - Misalignment Angle - 8.5 º
  • Radial Static Limit Load - 100,730 lbs
  • Approximate Brg. Weight - .90 lb
  • Type of Lubrication - None
