SKF Thrust Bearing

Stock Code:
51134-M_SKF
$1,298.44 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

51134 M

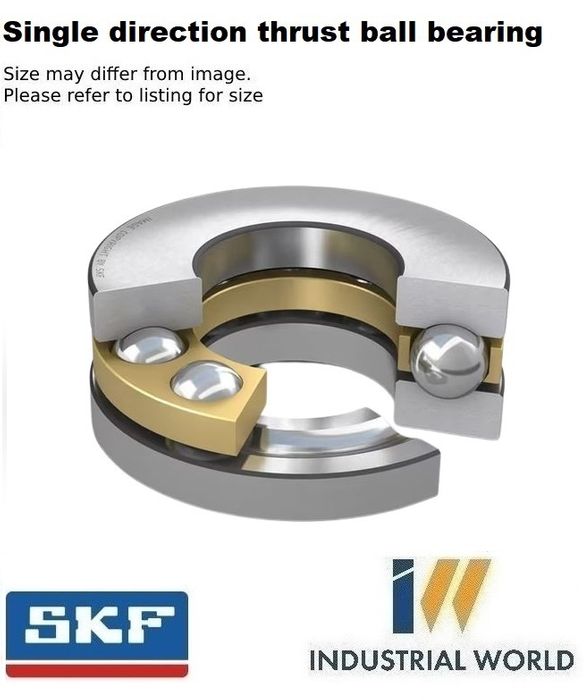

Single direction thrust ball bearing

Single direction thrust ball bearings can accommodate axial loads in one direction. They must not be subjected to any radial load. Their separable components facilitate mounting/dismounting and maintenance inspections. Many of the components are interchangeable. The shaft washers have a ground bore that enables an interference fit.

  • Separable design facilitates mounting/dismounting and maintenance inspections
  • Interchangeable components
  • Ground bore of shaft washers enable interference fit

Dimensions

Bore diameter170 mm
Outside diameter215 mm
Height34 mm

Performance

Basic dynamic load rating133 kN
Basic static load rating540 kN
Reference speed1 600 r/min
Limiting speed2 200 r/min

Properties

Axial load capabilitySingle-direction
Number of rows1
CageMachined metal
Housing washer typeFlat
Tolerance classNormal
Material, bearingBearing steel
CoatingWithout

Logistics

Product net weight2.96 kg
eClass code23-05-10-01
UNSPSC code31171507

Click here for catalogue information

Product Guide Attached
