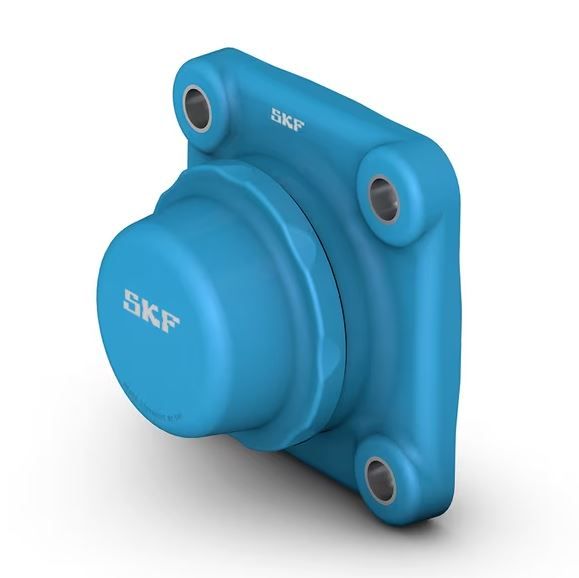

SKF Foodline Unit - with end cover & back seal

30 mm bore F housing (F4BC 30M-CPSS-DFH)
Stock Code:
F4BC-30M-CPSS-DFH_SKF
$253.75 incl GST

Stock Locations

  • Ballarat:
    5 In Stock
  • Shepparton:
    Special Order
28 On Order
Make an Enquiry
Add to Favourites

Description

F4BC 30M-CPSS-DFH

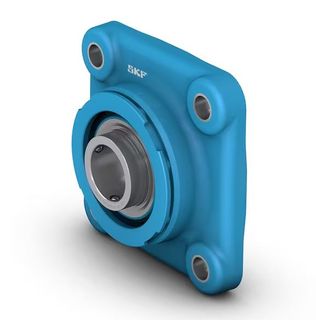

Square flanged ball bearing unit with set screw locking and narrow inner ring, composite housing, SKF Food Line

These square flanged ball bearing units are designed especially for the food and beverage industries. They are chemical resistant, lightweight and strong. The unit consists of an insert bearing, with a narrow inner ring and set screw locking, and is suitable for applications where the direction of rotation is constant or alternating. The bearing is mounted in a composite housing, which can be bolted to a machine wall or frame. Ball bearing units can accommodate moderate initial misalignment, but normally do not permit axial displacement.

  • Chemical resistant
  • Lubricated for life with a non-toxic food grade grease
  • Lightweight
  • Strong

Dimensions

Shaft diameter30 mm
Housing overall width33 mm
Centre distance between bolt holes83 mm
Bearing width, total31.2 mm

Performance

Basic dynamic load rating16.3 kN
Basic static load rating11.2 kN
Limiting speed700 r/min

Properties

Housing typeFlanged
Flanged housing typeSquare
Number of bolt holes for fasteners4
Fastening bolt hole typePlain
Retaining feature, inner ringSet screws
Bore typeCylindrical
Rubber seating ringWithout
Material, housingComposite for the SKF Food Line
Material, bearingStainless steel
CoatingWithout
Sealing, bearingSeal on both sides and flinger on one side
Sealing typeContact, gutter
Sealing, unitEnd cover and back seal
LubricantGrease
Relubrication holeWithout
Grease fittingWithout

Logistics

Product net weight0.469 kg
eClass code23-05-08-02
UNSPSC code31171536

Click here for catalogue information

Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    30 mm
  • Material:
    Stainless Steel & Composite
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Type:
    with end cover & back seal
  • Style:
    SKF Food Line (Blue)
