BALL BUSH

Stock Code:
GEH12C_SKF
$40.54 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    5 In Stock
Make an Enquiry
Add to Favourites

Description

GEH 12 C

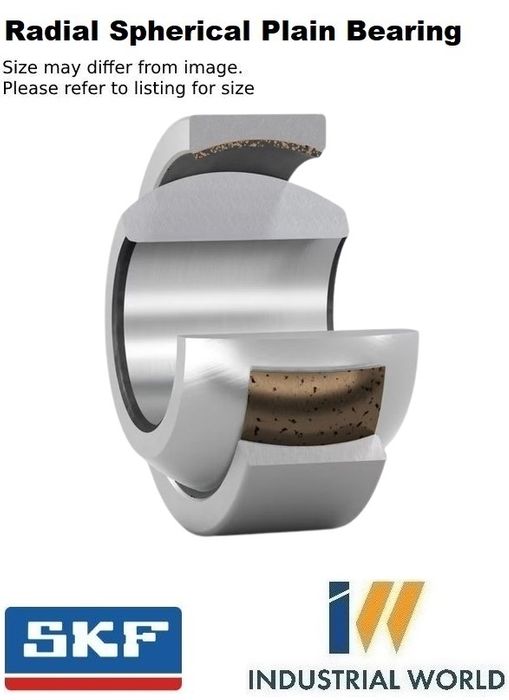

Radial spherical plain bearing, maintenance-free, metric sizes

These spherical plain bearings have a steel/PTFE sintered bronze contact surface combination and are maintenance-free. The sliding surfaces have to be externally protected from contaminants. These bearings are also available with a wider inner ring and a larger outside diameter (suffix GEH), which enable higher load ratings and larger tilt angles.

  • Designed for radial and combined radial and axial loads
  • Long service life and maintenance-free
  • Suitable for heavy, constant direction loads
  • Low coefficient of friction
  • High operating temperatures
  • High sliding velocities and small operating clearances

Dimensions

Bore diameter12 mm
Outside diameter26 mm
Width, inner ring15 mm
Width, outer ring9 mm

Performance

Basic dynamic load rating18 kN
Basic static load rating45 kN

Properties

Sliding contact surface combinationSteel/PTFE sintered bronze
Material, inner ringBearing steel
Material, outer ringSteel
MaintenanceMaintenance-free
SealingWithout
Relubrication featureWithout

Logistics

Product net weight0.034 kg
eClass code23-05-01-06
UNSPSC code31171515

Click here for catalogue information

View product table

Product Guide Attached
