NSK - Metric Thrust Ball Bearing

15 x 32 x 12 mm
Stock Code:
51202_NSK
$29.70 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

51202 NSK

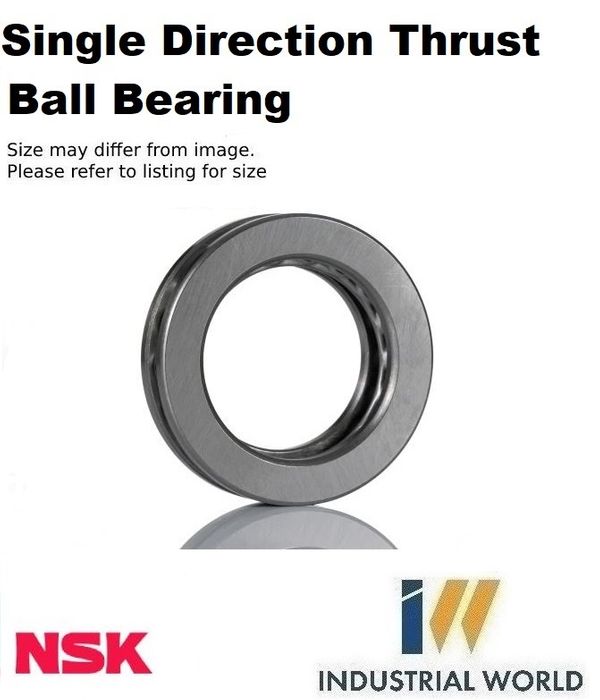

Single direction thrust ball bearing

Single direction thrust ball bearings can accommodate axial loads in one direction. They must not be subjected to any radial load. Their separable components facilitate mounting/dismounting and maintenance inspections. Many of the components are interchangeable. The shaft washers have a ground bore that enables an interference fit.

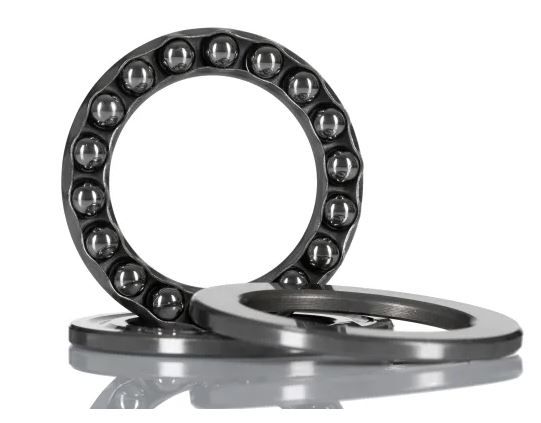

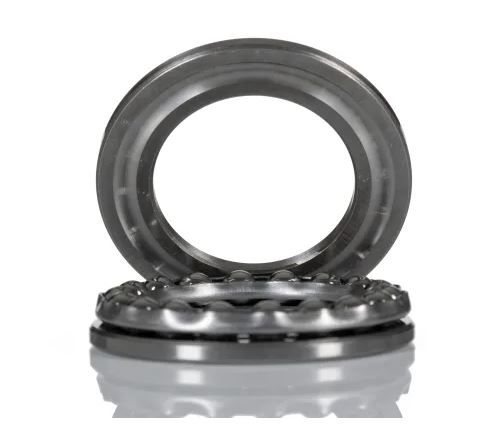

Single-direction thrust ball bearings are comprised of two bearing washers (a shaft washer and a housing washer) and a single cage containing the balls. They can sustain axial loads in one direction.

Features

  • Specialized design
    A cage contains the balls while the grooved aligning seat washer guides them.
  • Dedicated components
    Washers attached to the shaft are called “shaft washers” and those attached to the housing are called “housing washers” (fixed rings).
  • Support axial loads
    Single-direction thrust ball bearings can take axial loads in one direction.

Applications

  • Printer peripheral equipment, ball screw support sections of precision positioning stages, automatic guided vehicles (AGVs), radial drilling machines, fishing reels
Properties
  • Steel cage
  • Single direction

Dimensions / Specifications

  • 15.00 mm ID
  • 32.00 mm OD
  • 12.00 mm Width

Click here for catalogue information

Click here for detailed thrust ball bearing information

Product Guide Attached
