Nyloc Nut - SS 316 - M5 (Box=100)

DIN 985 / A4 - M5-0.80
Stock Code:
NN16PCM05
$0.17 incl GST
Minimum Order Quantity: 100

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order

Must be ordered in multiples of 100

Make an Enquiry
Add to Favourites

Description

DESCRIPTION

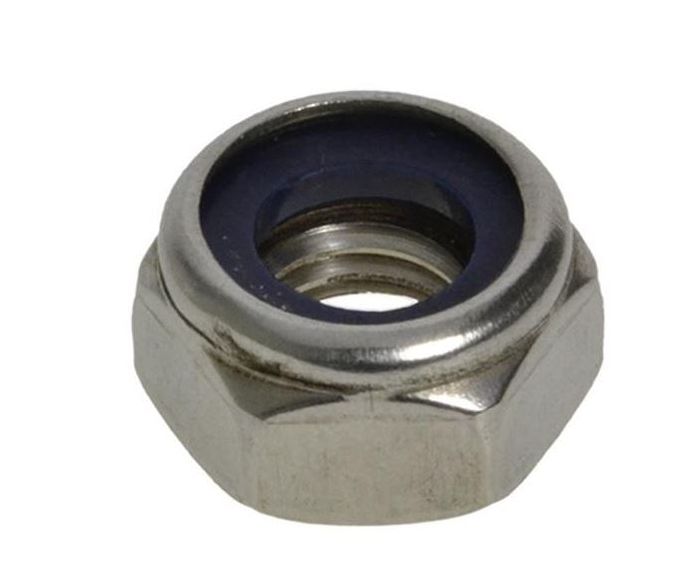

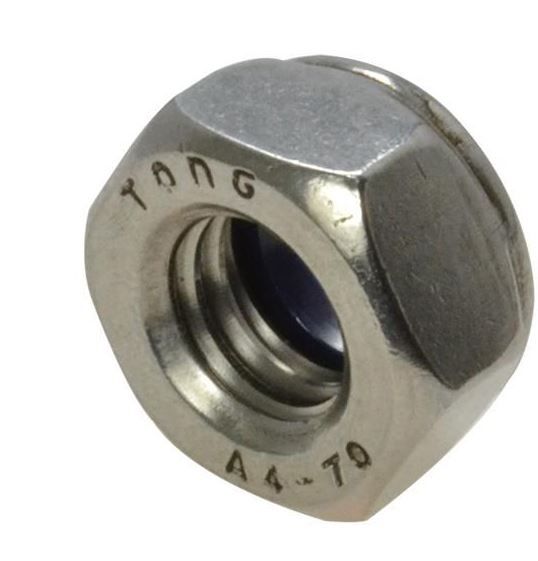

Nyloc Nut - Stainless Steel 316 - M5 (Box=100)

316 DIN985 NYLOC: M5 (Box =100)

Hex Nyloc Insert nuts is hex shaped, internally threaded with a nylon insert. The nylon material prevents loosening from vibration and cross threads to stop the nut from backing off of the fastener. The insert deforms elastically over the threads of the screw, but threads are not cut into the nylon. The nylon insert locks the nut in two ways. First, it forces the bottom face of the screw threads against the top face of the nut threads, increasing the friction between the two. Second, the nylon applies a compressive force against the screw itself. They can also be used to assist sealing the bolt thread against seepage of oil, water, petrol, paraffin and other liquids.They come in a variety of materials

Stainless Steel is designed to be used in all conditions. It is the best material to use in marine, coastal, chemical and food environments.

Finish
316 STAINLESS

Marine Grade Stainless Steel A4-70 G316 is the ultimate corrosion resistance fastener. Designed to be used in all conditions. The best fastener for marine, coastal, chemical and food environments.

Product
NYLOC HEX NUT

Size
M5

Specification
DIN 985 / A4

Thread
M5-0.80

QTY - Sold Individually


Click here for hobson stainless product guide

Click here for hobson technical anti vibration paper

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Thread Size:
    M5-0.80
  • Left or Right Hand:
    Right Hand
  • Material:
    Stainless Steel 316
  • Brand:
    Hobson
  • Metric/Imperial:
    Metric
  • Size:
    Each
