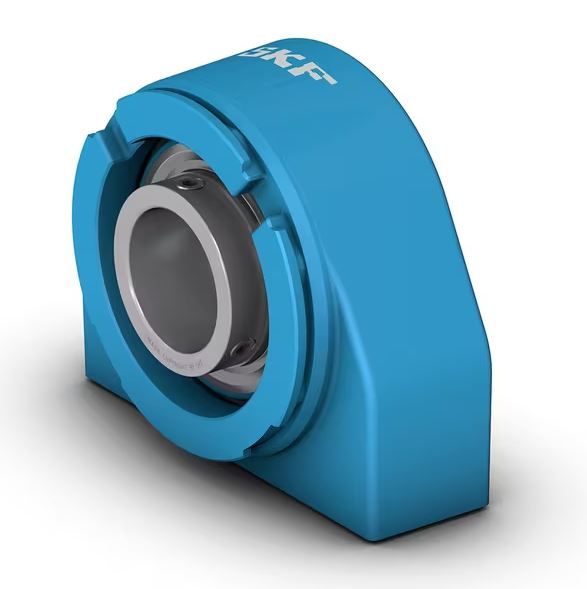

SKF Foodline Unit - (Alternative CPSS-DFH)

50 mm bore PA/SYF housing (P2BTC 50M-TPSS)
Stock Code:
P2BTC-50M-TPSS_SKF
$613.34 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

P2BTC 50M-TPSS
Short base pillow block ball bearing unit with extended inner ring and set screw locking, composite

Short base pillow (plummer) block ball bearing units consist of an insert bearing mounted in a composite housing. This variant has threads for attachment bolts and is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on both sides and is locked onto the shaft by tightening a set screw on the inner ring, making it easy to mount.

  • Designed for a constant and alternating rotation
  • Excellent corrosion resistance
  • Lightweight
  • Recyclable

Dimensions

Shaft diameter50 mm
Centre height (pillow block)57.2 mm
Housing overall width33 mm
Centre distance between bolt holes101.5 mm
Bearing width, total51.6 mm

Performance

Basic dynamic load rating29.6 kN
Basic static load rating23.2 kN
Limiting speed2 200 r/min
NoteLimiting speed with shaft tolerance h6

Properties

Housing typePillow block
Number of bolt holes for fasteners2
Fastening bolt hole typeThreaded
Retaining feature, inner ringSet screws
Bore typeCylindrical
Rubber seating ringWithout
Material, housingComposite for the SKF Food Line
Material, bearingStainless steel
CoatingWithout
Sealing, bearingSeal and flinger on both sides
Sealing typeContact, gutter
Sealing, unitOptional end cover
LubricantGrease
Relubrication holeWithout
Grease fittingWithout

Logistics

Product net weight0.998 kg
eClass code23-05-08-02
UNSPSC code31171536

Click here for catalogue information

Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    50 mm
  • Material:
    Stainless Steel & Composite
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Type:
    open unit
  • Style:
    SKF Food Line (Blue)
