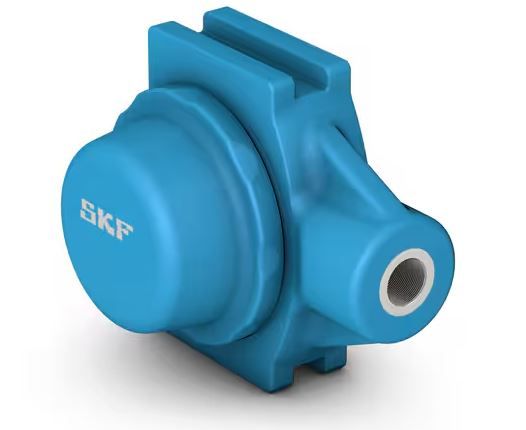

SKF Foodline Unit - with end cover & back seal

30 mm bore HA housing (WSTUC 30M-CPSS-DFH)
Stock Code:
WSTUC-30M-CPSS-DFH_SKF
$372.93 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

WSTUC 30M-CPSS-DFH
Take-up composite unit with insert ball bearing, set screw locking and narrow inner ring, not standardized, SKF Food Line

Take-up ball bearing units for the SKF Food Line, consisting of an insert bearing based on a sealed deep groove ball bearing mounted in a composite housing. They are strong, yet lightweight, and chemically resistant to detergents and contaminants. This variant is intended for use in applications where the direction of rotation is alternating. It has an inner ring extended on one side and is locked by tightening a set screw on the inner ring, which makes it easy to mount.

  • Strong, yet lightweight
  • Chemically resistant
  • Designed for an alternating rotation
  • Well suited to follow the highest food safety standards
  • Reliable in wet environments

Dimensions

Shaft diameter30 mm
Housing overall width39 mm
Bearing width, total31.2 mm

Performance

Basic dynamic load rating16.3 kN
Basic static load rating11.2 kN
Limiting speed700 r/min

Properties

Housing typeTake-up
Retaining feature, inner ringSet screws
Bore typeCylindrical
Rubber seating ringWithout
Material, housingComposite for the SKF Food Line
Material, bearingStainless steel
CoatingWithout
Sealing, bearingSeal on both sides and flinger on one side
Sealing typeContact, gutter
Sealing, unitEnd cover and back seal
LubricantGrease
Relubrication holeWithout
Grease fittingWithout

Logistics

Product net weight0.52 kg
eClass code23-05-08-02
UNSPSC code31171536

Click here for catalogue information

Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    30 mm
  • Material:
    Stainless Steel & Composite
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Type:
    with end cover & back seal
  • Style:
    SKF Food Line (Blue)
