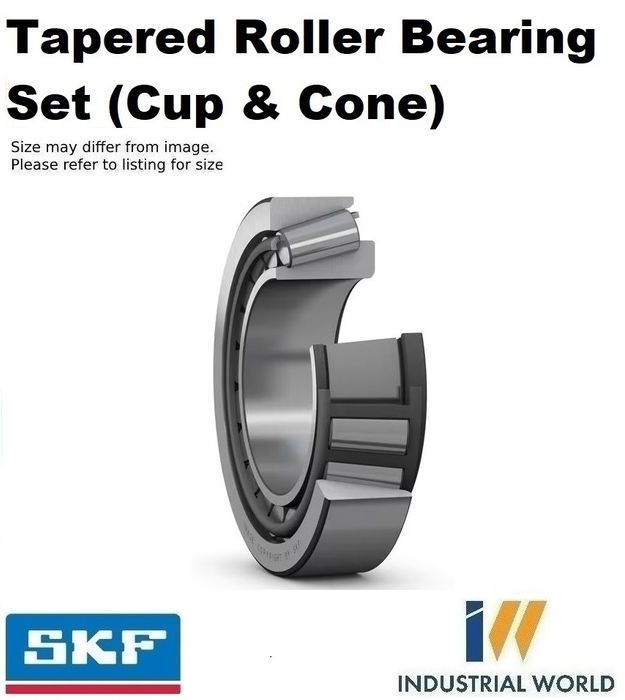

SKF - Metric Tapered Roller Bearing Set

40 x 90 x 25.25 mm (Cup & Cone Set)
Stock Code:
31308-CL7C_SKF
$65.15 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

31308/CL7C
Single row tapered roller bearing

Single row tapered roller bearings are designed to accommodate combined radial and axial loads and provide low friction during operation. The inner ring, with rollers and cage, can be mounted separately from the outer ring. These separable and interchangeable components facilitate mounting, dismounting and maintenance. By mounting one single row tapered roller bearing against another and applying a preload, a rigid bearing application can be achieved.

  • High radial and axial load carrying capacity
  • Accommodate axial loads in one direction
  • Low friction and long service life
  • Separable and interchangeable components

Dimensions

Bore diameter40 mm
Outside diameter90 mm
Width, total25.25 mm
Width, inner ring23 mm
Width, outer ring17 mm
Contact angle28.811 °

Performance

Basic dynamic load rating91.1 kN
Basic static load rating81.5 kN
Reference speed5 600 r/min
Limiting speed7 500 r/min
SKF performance classSKF Explorer

Properties

Bearing partComplete bearing
Number of rows1
Locating feature, bearing outer ringNone
Bore typeCylindrical
CageSheet metal
Arrangement of contact angle (double-row bearing)Not applicable
Matched arrangementNo
CoatingWithout
SealingWithout
LubricantNone
Relubrication featureWithout

Logistics

Product net weight0.72 kg
eClass code23-05-09-10
UNSPSC code31171516

Click here for product information

Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    40 mm
  • Material:
    Chrome Steel
  • Width:
    25.25 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Chain Series:
    313
  • Type:
    Set (Cup & Cone)
  • Diameter Outside:
    90 mm
