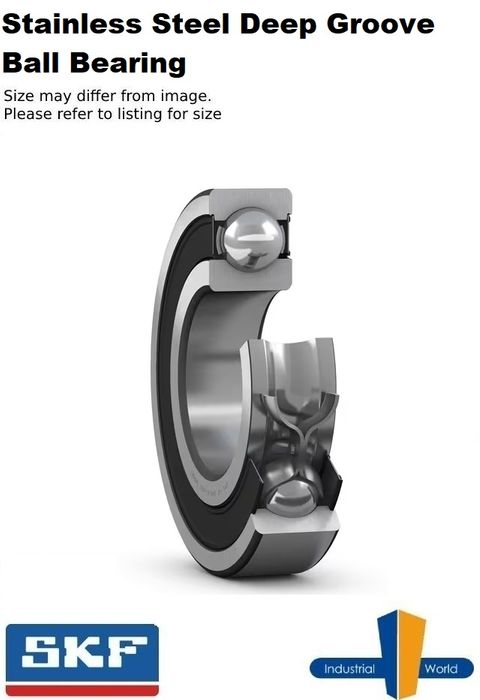

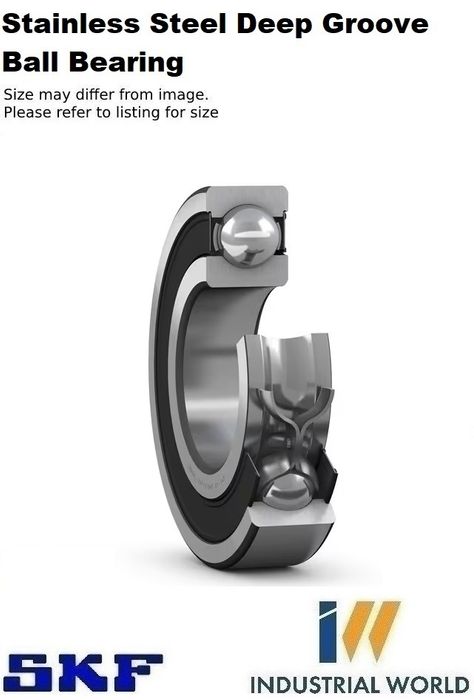

SKF - Stainless Steel Deep Groove Ball Bearing

35 x 72 x 17 W 6207-2RS1
Stock Code:
W6207-2RS1_SKF
$148.15 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

W 6207-2RS1
Stainless steel deep groove ball bearing with integral sealing

Stainless steel single row deep groove ball bearing with seals or shields on both sides, provide greater chemical and corrosion resistance. As with deep groove ball bearings generally, they are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than other bearing types. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.

  • Greater chemical and corrosion resistance
  • Integral sealing prolongs bearing service life
  • Typical benefits of single row deep groove ball bearings

Dimensions

Bore diameter35 mm
Outside diameter72 mm
Width17 mm

Performance

Basic dynamic load rating22.1 kN
Basic static load rating15.3 kN
Limiting speed6 000 r/min

Properties

Filling slotsWithout
Number of rows1
Locating feature, bearing outer ringNone
Bore typeCylindrical
CageSheet metal
Matched arrangementNo
Radial internal clearanceCN
Tolerance classNormal
Material, bearingStainless steel
CoatingWithout
SealingSeal on both sides
Sealing typeContact
LubricantGrease
Relubrication featureWithout

Logistics

Product net weight0.278 kg
eClass code23-05-08-01
UNSPSC code31171504

Click here for catalogue information

View product table

Calculate rating life, frequencies


Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    35 mm
  • Material:
    Stainless Steel
  • Width:
    17 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Chain Series:
    Standard Clearance
  • Type:
    2RS - Rubber Seal - Both Sides
  • Diameter Outside:
    72 mm
