SKF Multilog IMx-8 surveillance system

8 analogue / 2 digital inputs
Stock Code:
CMON4108_SKF
$5,942.82 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

CMON4108 SKF

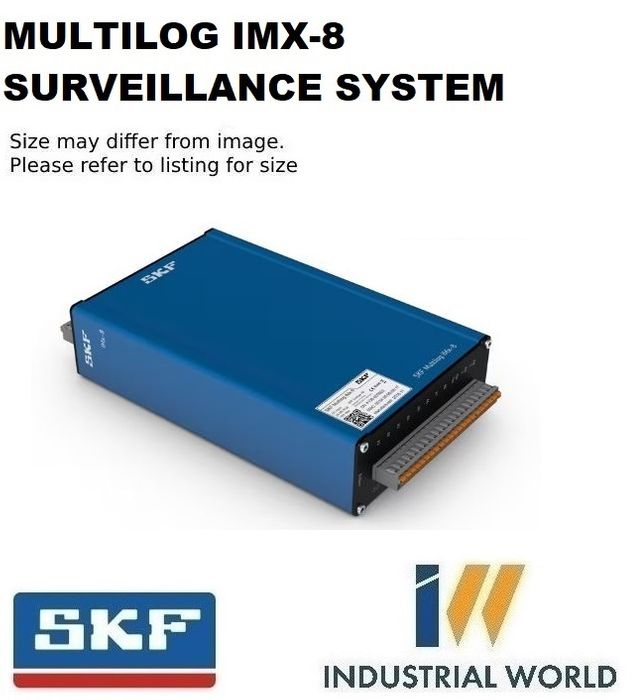

SKF Multilog IMx-8 surveillance system

The SKF Multilog on-line system IMx-8 provides a powerful solution for applications requiring continuous condition monitoring of up to 8 analogue and 2 digital channels. Coupled with SKF software, it provides a complete system for early fault detection and prevention, automatic advice for correcting existing or impending machine conditions and advanced condition based maintenance to improve reliability, availability and performance.

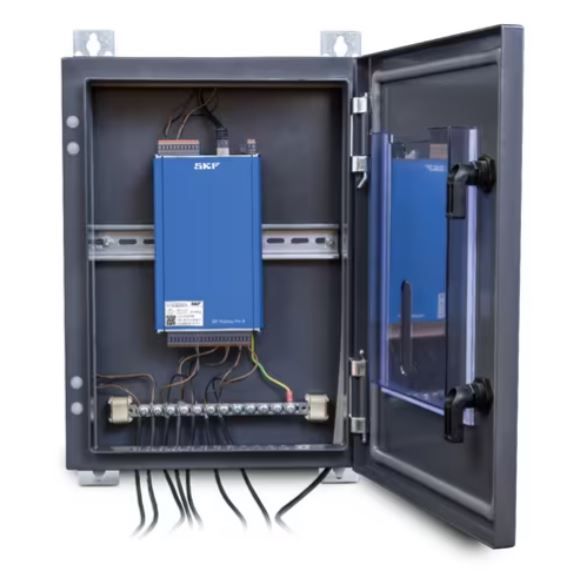

They are DIN rail mounted or can be housed in an IP65 cabinet to provide additional protection in demanding industrial environments.

  • Compact design
  • 8 analogue inputs (typically vibration)
  • 2 digital inputs (speed)
  • Simultaneous measurements on all channels and configurable for true synchronous measurements
  • PoE (Power over Ethernet) and/or 24 – 48 V DC
  • 4 GB internal memory for data and event captures
  • Data buffering in non-volatile memory when communication is down
  • Improved Modbus TCP/IP and Modbus RTU capabilities including multiple and simultaneous use
  • Stand-alone mode or compatible with SKF @ptitude Observer

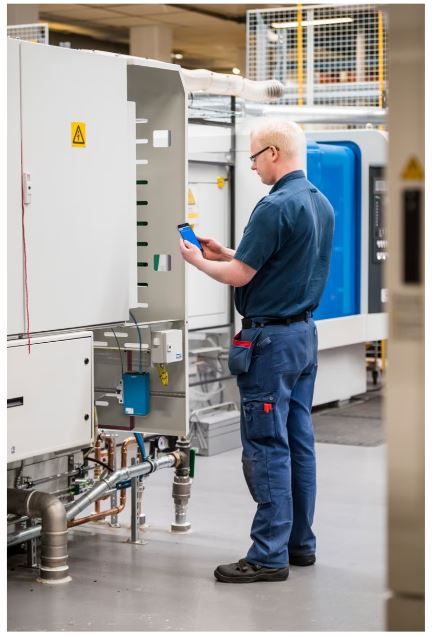

  • Bluetooth configuration and data access in stand-alone mode via iOS and Android apps
  • App support for SAT (Site acceptance test)
  • Crash detection capability (machine tools)
  • Event and run cycle based long time waveform captures
  • Applicable to the wind energy, marine, machine tool and process industries

Click here for catalogue information

Condition monitoring information

Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:

online@iw.net.au

Details

  • Brand:
    SKF
