SKF - Agri Hub 5 x Threaded Holes M12x1.25

PCD 98mm 28mm Shaft M22x1.5
Stock Code:
BAA-0012_SKF
$163.54 incl GST

Stock Locations

  • Ballarat:
    48 In Stock
  • Shepparton:
    Special Order
50 On Order
Make an Enquiry
Add to Favourites

Description

BAA-0012

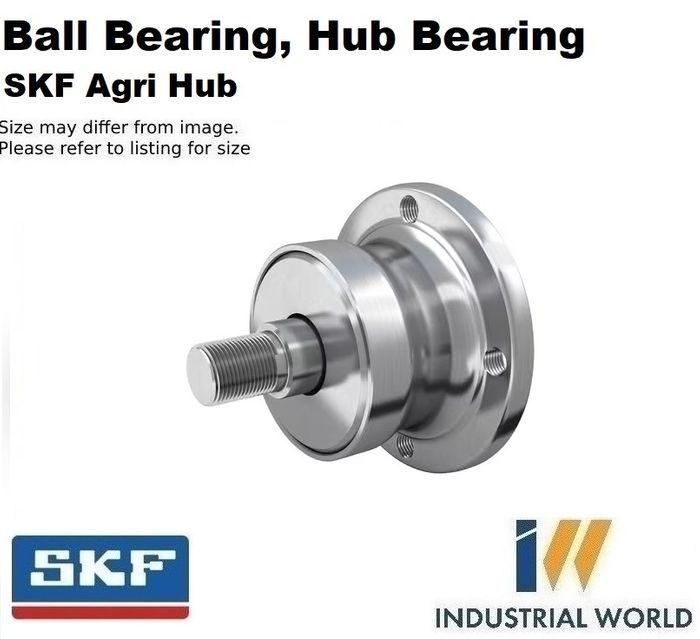

Ball bearing, hub bearing unit, SKF Agri Hub

SKF Agri Hubs are maintenance-free, sealed bearing units, providing major advantages for both original equipment manufacturers and final customers. Prepared with grease and sealed, SKF Agri Hubs do not need grease refill and reduce the risk for grease spillage. Thanks to their high stiffness, the risk for disc tilt is minimized and machine reliability is further improved.

  • Easy and quick to mount and remove
  • Maintenance-free
  • Greased for life
  • Improved machine reliability

Dimensions

Shaft diameter28 mm
Width, total59 mm
Thread designationM22x1.5

Performance

Basic dynamic load rating47.5 kN
Basic static load rating37.5 kN

Properties

ApplicationFor individual tillage disc application
StandardNot standardized
Attachment thread diameterM12x1.25
Number of bolt holes for fasteners5
Fastening bolt hole typeThreaded
Bore typeShaft with thread
Material, bearingBearing steel
SealingWith
Sealing typeSKF Mudblock seal
LubricantGrease

Logistics

Product net weight2.22 kg
eClass code23-05-16-90
UNSPSC code31171503
