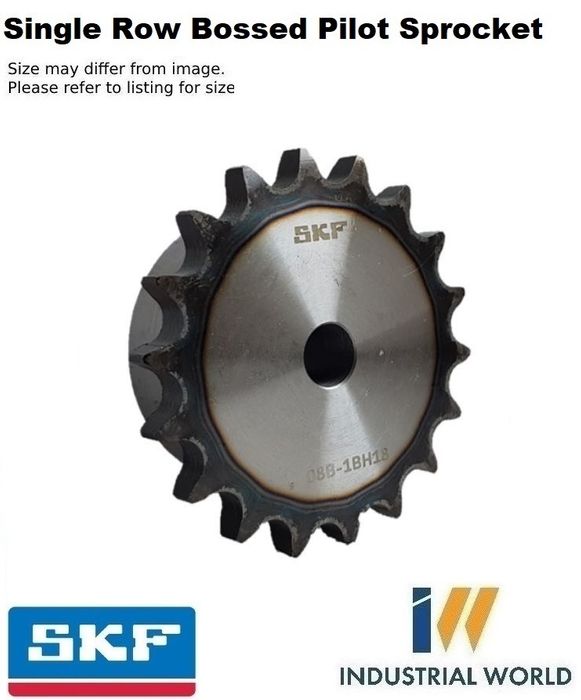

SKF - 08B1/40/40H (1/2) SPROCKET 18 TEETH 1 ROW

SINGLE ROW - BOSSED - PILOT (PHS 08B-1BH18)
Stock Code:
SPR-08B1-18-PB_SKF
$13.75 incl GST

Stock Locations

  • Ballarat:
    10 In Stock
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

SPR-08B1-18-PB

Sprockets are available in many sizes, to fit a variety of design solutions. These simplex sprockets have a rough stock bore and hub profile on one side of the sprocket to connect to the shaft. With a comprehensive range, you can easily find the correct sprocket size for your application. As standard, all sprockets are made from high-quality steels and have a black oxide coating, and sizes up to and including 25 tooth have hardened teeth.

  • Manufactured according to international global standards
  • Made from high-grade steel and carbon steel

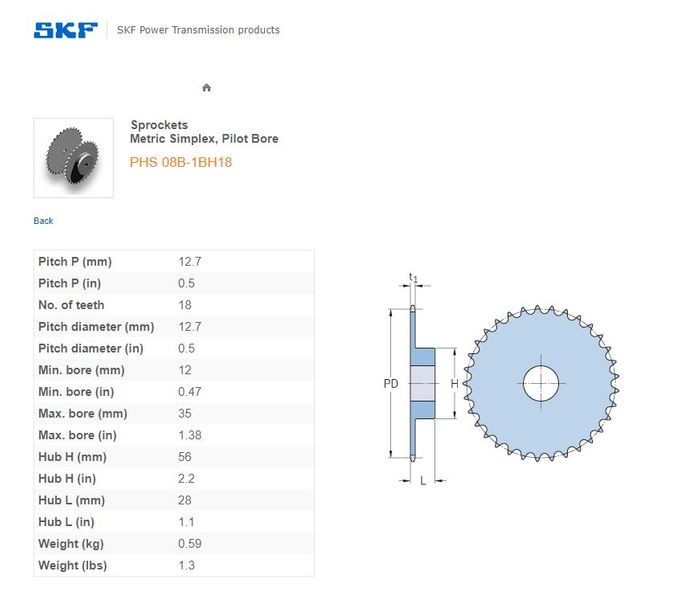

Pitch P (mm)12.7
Pitch P (in)0.5
No. of teeth18
Pitch diameter (mm)12.7
Pitch diameter (in)0.5
Min. bore (mm)12
Min. bore (in)0.47
Max. bore (mm)35
Max. bore (in)1.38
Hub H (mm)56
Hub H (in)2.2
Hub L (mm)28
Hub L (in)1.1
Weight (kg)0.59
Weight (lbs)1.3

Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    Pilot Bore
  • Material:
    Hardened Teeth Steel
  • Brand:
    SKF
  • Number of Rows:
    1 Row
  • Pitch:
    1/4 Inch
  • Chain Series:
    BRITISH / ANSI
  • Type:
    PILOT BORE SPROCKET
  • Size:
    18
  • Chain Size:
    08B1 / 40 / 40H (SINGLE ROW)
