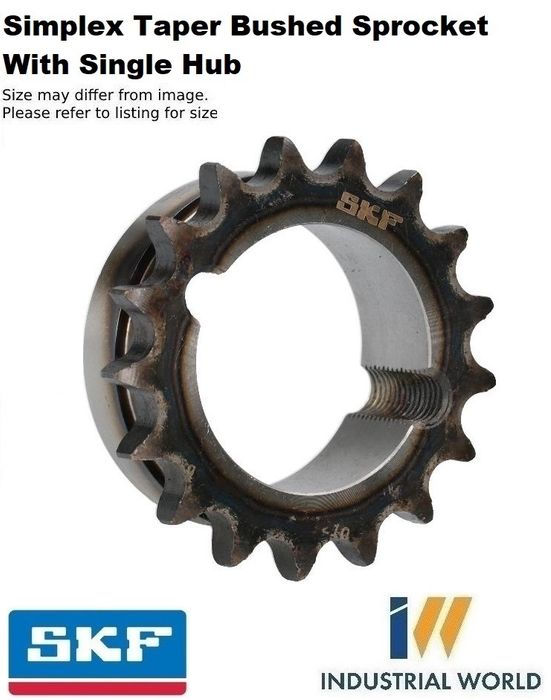

SKF - 12B1/60/60H (3/4) SPROCKET 13 TEETH 1 ROW

SINGLE ROW - 1210 TAPERLOCK (PHS 12B-1TBH13)
Stock Code:
SPR-12B1-13-TL_SKF
$32.53 incl GST

Stock Locations

  • Ballarat:
    33 In Stock
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

SPR-12B1-13-TL

Sprockets are available in many sizes, to fit a variety of design solutions. These simplex sprockets have a rough stock bore and hub profile on one side of the sprocket to connect to the shaft. With a comprehensive range, you can easily find the correct sprocket size for your application. As standard, all sprockets are made from high-quality steels and have a black oxide coating, and sizes up to and including 25 tooth have hardened teeth.

  • Manufactured according to international global standards
  • Made from high-grade steel and carbon steel

Dimensions

Bore max32 mm
Bore min11 mm
Hub diameter60 mm
Pitch19.05 mm
Pitch diameter79.59 mm
Width, total25 mm

Properties

Bushing number1210
MaterialSteel
Number of teeth13
Sprocket typeB
StandardBS

Logistics

Product net weight0.38 kg
eClass code23-17-04-50
UNSPSC code31171901

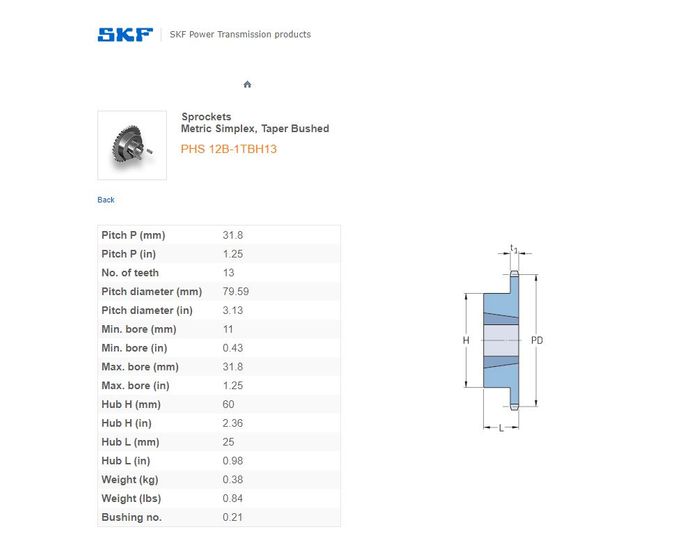

Click here for product information

Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    Taperlock
  • Material:
    Hardened Teeth Steel
  • Brand:
    SKF
  • Taperlock Size:
    1210
  • Number of Rows:
    1 Row
  • Pitch:
    3/4 Inch
  • Chain Series:
    BRITISH / ANSI
  • Type:
    TAPERLOCK BUSH SPROCKET
  • Size:
    13
  • Chain Size:
    12B1 / 60 / 60H (SINGLE ROW)
