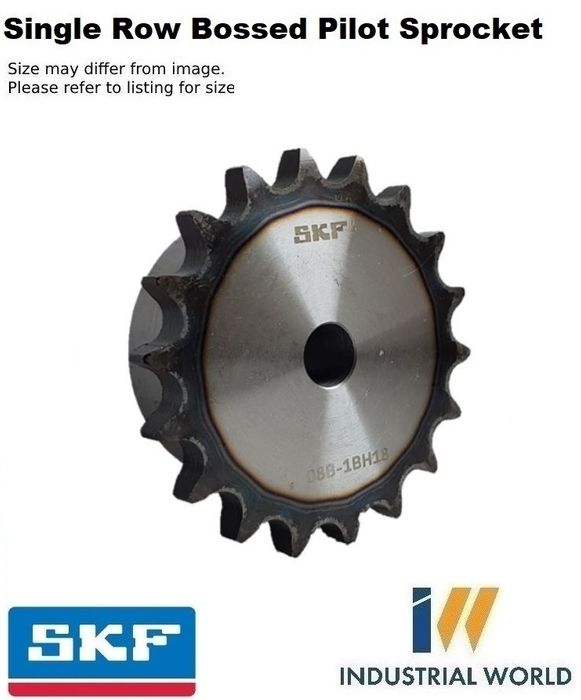

SKF - 16B1 (1 Inch) SPROCKET 42 TEETH 1 ROW

SINGLE ROW - BOSSED - PILOT (PHS 16B-1BH42)
Stock Code:
SPR-16B1-42-PB_SKF
$434.83 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

SPR-16B1-42-PB

Sprockets are available in many sizes, to fit a variety of design solutions. These simplex sprockets have a rough stock bore and hub profile on one side of the sprocket to connect to the shaft. With a comprehensive range, you can easily find the correct sprocket size for your application. As standard, all sprockets are made from high-quality steels and have a black oxide coating, and sizes up to and including 25 tooth have hardened teeth.

  • Manufactured according to international global standards
  • Made from high-grade steel and carbon steel

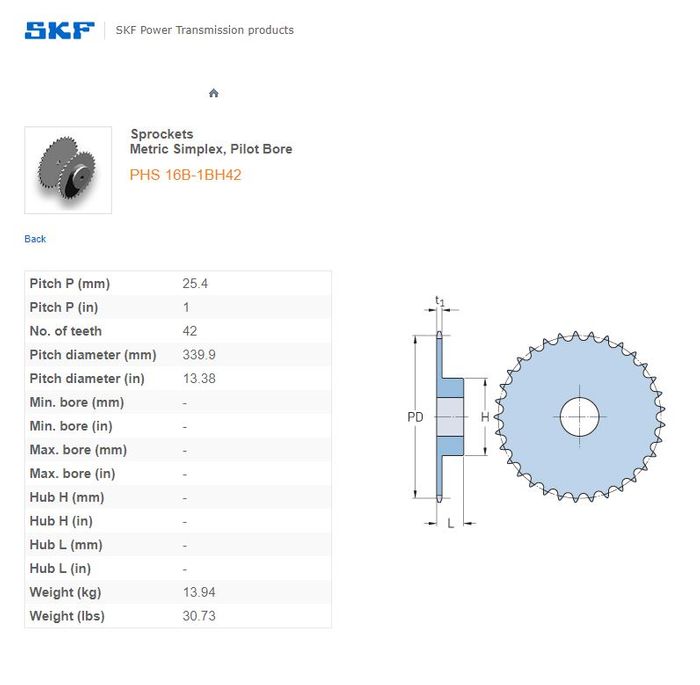

Pitch P (mm)25.4
Pitch P (in)1
No. of teeth42
Pitch diameter (mm)339.9
Pitch diameter (in)13.38
Min. bore (mm)-
Min. bore (in)-
Max. bore (mm)-
Max. bore (in)-
Hub H (mm)-
Hub H (in)-
Hub L (mm)-
Hub L (in)-
Weight (kg)13.94
Weight (lbs)30.73

Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    Pilot Bore
  • Material:
    Hardened Teeth Steel
  • Brand:
    SKF
  • Number of Rows:
    1 Row
  • Pitch:
    1 Inch
  • Chain Series:
    BRITISH
  • Type:
    PILOT BORE SPROCKET
  • Size:
    42
  • Chain Size:
    16B1 (SINGLE ROW)
