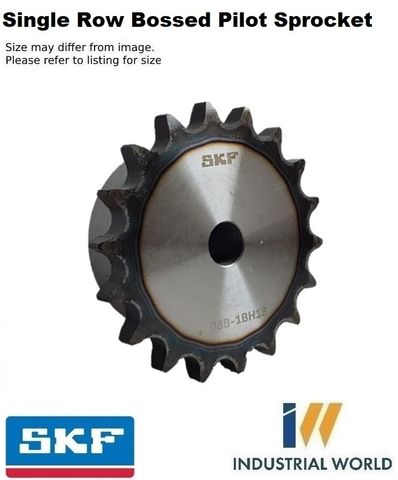

SKF - 24B1 (1-1/2) SPROCKET 12 TEETH 1 ROW

SINGLE ROW - BOSSED - PILOT (PHS 24B-1BH12)
Stock Code:
SPR-24B1-12-PB_SKF
$109.09 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

SPR-24B1-12-PB

Sprockets are available in many sizes, to fit a variety of design solutions. These simplex sprockets have a rough stock bore and hub profile on one side of the sprocket to connect to the shaft. With a comprehensive range, you can easily find the correct sprocket size for your application. As standard, all sprockets are made from high-quality steels and have a black oxide coating, and sizes up to and including 25 tooth have hardened teeth.

  • Manufactured according to international global standards
  • Made from high-grade steel and carbon steel
Pitch P (mm)38.1
Pitch P (in)1.5
No. of teeth12
Pitch diameter (mm)147.21
Pitch diameter (in)5.8
Min. bore (mm)25
Min. bore (in)0.98
Max. bore (mm)67
Max. bore (in)2.64
Hub H (mm)102
Hub H (in)4.02
Hub L (mm)50
Hub L (in)1.97
Weight (kg)4.77
Weight (lbs)10.52

Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    Pilot Bore
  • Material:
    Hardened Teeth Steel
  • Brand:
    SKF
  • Number of Rows:
    1 Row
  • Pitch:
    1-1/2 Inch
  • Chain Series:
    BRITISH / ANSI
  • Type:
    PILOT BORE SPROCKET
  • Size:
    12
  • Chain Size:
    24B1 / 120 / 120H (SINGLE ROW)
