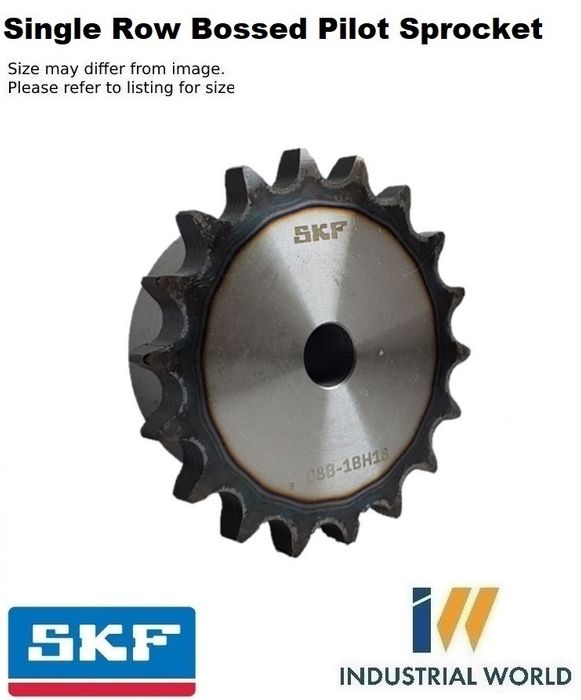

SKF - 06B1 (3/8) SPROCKET 23 TEETH 1 ROW

SINGLE ROW - BOSSED - PILOT (PHS 06B-1BH23)
Stock Code:
SPR-06B1-23-PB_SKF
$13.09 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

SPR-06B1-23-PB

Sprockets are available in many sizes, to fit a variety of design solutions. These simplex sprockets have a rough stock bore and hub profile on one side of the sprocket to connect to the shaft. With a comprehensive range, you can easily find the correct sprocket size for your application. As standard, all sprockets are made from high-quality steels and have a black oxide coating, and sizes up to and including 25 tooth have hardened teeth.

  • Manufactured according to international global standards
  • Made from high-grade steel and carbon steel

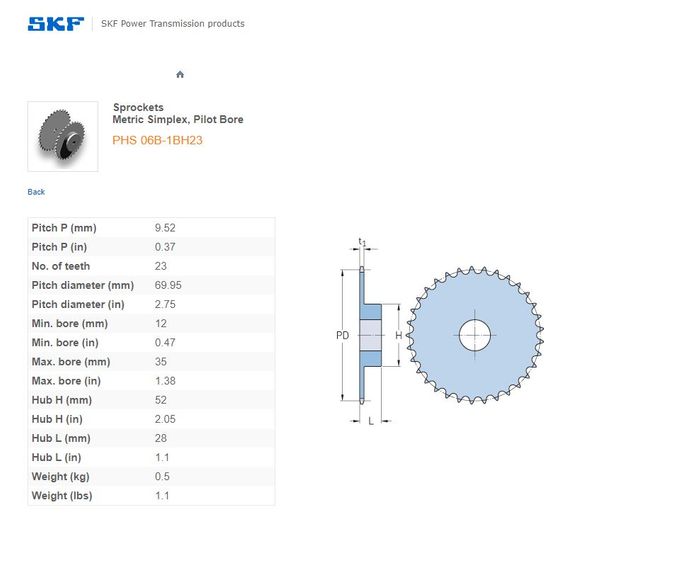

Pitch P (mm)9.52
Pitch P (in)0.37
No. of teeth23
Pitch diameter (mm)69.95
Pitch diameter (in)2.75
Min. bore (mm)12
Min. bore (in)0.47
Max. bore (mm)35
Max. bore (in)1.38
Hub H (mm)52
Hub H (in)2.05
Hub L (mm)28
Hub L (in)1.1
Weight (kg)0.5
Weight (lbs)1.1

Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    Pilot Bore
  • Material:
    Hardened Teeth Steel
  • Brand:
    SKF
  • Number of Rows:
    1 Row
  • Pitch:
    3/8 Inch
  • Chain Series:
    BRITISH
  • Type:
    PILOT BORE SPROCKET
  • Size:
    23
  • Chain Size:
    06B1 (SINGLE ROW)
